Qb60 Electric Vortex Peripheral Water Pump Brass Impeller For Clean Water

Place of Origin Fujian China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number QB-60
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:280x145x180mm/pc, N.W.: 5.3kgs
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Vortex Water Pump Structure Single Stage Pump
Power 0.5HP / 0.37KW Flow Max 35 L/Min
Head Max 35M Suction Max 9M
Impeller Brass Speed 2850RPM
Product Name Peripheral Water Pump
High Light

domestic water pump

,

vortex water pump

Leave a Message
Product Description

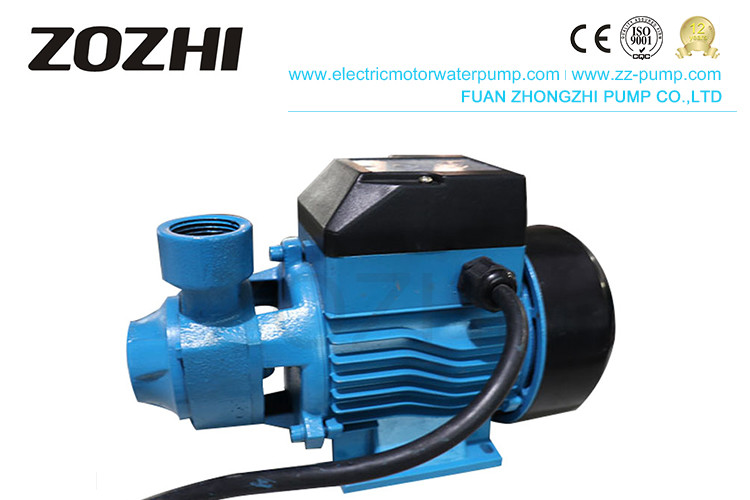

Qb60 Electric Vortex Peripheral Water Pump Brass Impeller For Clean Water


PERIPHERAL PUMP

Brass impeller with evenly arranged radial vanes
Antirust copper inserts prevent impeller's block when starting after the pump is unused for a long time.
Max. Liquid temperature: +35ºC
Max. Suction: 8m
Cast iron pump body and support

QB VORTEX PUMP
Model QB-60
Power 0.37KW / 0.5HP
Max flow 35 L/MIN
Max head 35M
Outlet 25MM
Gross.weight 5.5 KGS
Rotor length 50 MM
Packing size 28.5*13.0*16.5 CM
20FT 4200 PCS
Warranty One year
MATERIALS
Pump body Cast Iron
Motor body Aluminum
Shaft # 45 Steel
Impeller Brass
mechanical seal

mechanical seal






Qb60 Electric Vortex Peripheral Water Pump Brass Impeller For Clean Water 0

Zhongzhi vortex peripheral pumps are qualified in domestic fittings to increase the distribution by small autoclave tanks or hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurities. QB series are suitable for domestic applications, such as supply water from well, pools, etc. It is also suitable for water pressure boosting gardening and automatic Water supplying system if composed with other appliances.




TECHNICAL DATA

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 280x145x180 5.3
QB70 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 330x180x220 9.5
QB80 1 / 0.75 4.8 2850 50 55 9 1½ "x1½" 330x180x220 10
QB90 1.5 / 1.1 6.2 2850 90 60 9 1½ "x1½" 425x200x220 22

Other voltages and frequencies available on request


Qb60 Electric Vortex Peripheral Water Pump Brass Impeller For Clean Water 1

 Hollow Shaft Motor

STRUCTURAL CHARACTERISTICS

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC




 Peripheral Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial oeration. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
