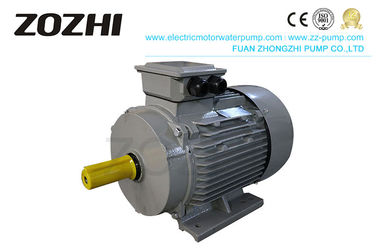

IE3-90S-4 IE3 Motor Cast Iron Body Material IP54 1.1kw With ISO/CE Certification

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number IE3-90S-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE3 Motor Body Material Cast Iron
Output 1.1kw Pole 4
Protection Class IP54 Frequency 60Hz
Rated Voltage 400V Insulation Class B
Efficiency Class IE3 Output Speed 2890
High Light

ie3 electric motors

,

3 phase electric motor

Leave a Message
Product Description



IE3-90S-4 IE3 Motor Cast Iron Body Material IP54 1.1kw With ISO/CE Certification





IE3 premium efficiency motor  Basic Data
No. Brand Name:  ZOZHI
1 Model Number: IE3-90S-4
2 Place of Origin: FUAN, China (mainland)
3 Insulation Class: Class B/F/H
4 Frequency: 60HZ
5 Output Power: 1.1KW
6 Phase: Three Phase
7 Wire: 100% copper
8 Duty: S1 (continuous)
9 Certification: ISO, C.E.
10 Protect Feature: Enclosed
11 A.C. Voltage: 400V or on request
12 Ambient temperature: -15°C≤0≤40°C
13 Altitude: No exceed 1000m
14 Mounting Type: B35
15 Standard: Conform to IEC international standard
16 Installation: we will send detailed instructions together with the Motors
17 Packaging Details: Packed with export requirements, protect the motors and are convenient for transport.
18 Delivery Details: 25-30 Days




IE3-90S-4 IE3 Motor Cast Iron Body Material IP54 1.1kw With ISO/CE Certification 0






Performance Chart:



NO. Type Output Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise Voltage
kW r/min (A) % CosΦ LwdB(A) V
1 IE3-802-4 0.75 1430 1.75 82.5 0.75 2.3 6.6 2.3 56 400
2 IE3-90S-4 1.1 1440 2.48 84.1 0.76 2.3 6.8 2.3 59 400
3 IE3-90L-4 1.5 1440 3.3 85.3 0.77 2.3 7 2.3 59 400
4 IE3-100L1-4 2.2 1455 4.52 86.7 0.81 2.3 7.6 2.3 64 400
5 IE3-100L2-4 3 1455 6.02 87.7 0.82 2.3 7.6 2.3 64 400
6 IE3-112M-4 4 1460 7.95 88.6 0.82 2.2 7.8 2.3 65 400
7 IE3-132S-4 5.5 1470 10.7 89.6 0.83 2 7.9 2.3 71 400
8 IE3-132M-4 7.5 1470 14.3 90.4 0.84 2 7.5 2.3 71 400
9 IE3-160M-4 11 1470 20.4 91.4 0.85 2.2 7.7 2.3 73 400
10 IE3-160L-4 15 1470 27.3 92.1 0.86 2.2 7.8 2.3 73 400
11 IE3-180M-4 18.5 1475 33.5 92.6 0.86 2 7.8 2.3 76 400
12 IE3-180L-4 22 1475 39.7 93 0.86 2 7.8 2.3 76 400
13 IE3-200L-4 30 1480 53.8 93.6 0.86 2 7.8 2.3 76 400
14 IE3-225S-4 37 1485 66.1 93.9 0.86 2 7.4 2.3 78 400
15 IE3-225M-4 45 1485 80.2 94.2 0.86 2 7.4 2.3 78 400
16 IE3-250M-4 55 1485 97.6 94.6 0.86 2 7.4 2.3 79 400
17 IE3-280S-4 75 1485 129 95 0.88 2 6.9 2.3 80 400
18 IE3-280M-4 90 1485 155 95.2 0.88 2 6.9 2.3 80 400
19 IE3-315S-4 110 1485 187 95.4 0.89 2 7 2.2 88 400
20 IE3-315M-4 132 1485 224 95.6 0.89 2 7 2.2 88 400
21 IE3-315L1-4 160 1485 271 95.8 0.89 2 7.1 2.2 88 400
22 IE3-315L2-4 200 1485 334 96 0.9 2 7.1 2.2 88 400
23 IE3-355M-4 250 1490 418 96 0.9 2 7.1 2.2 95 400
24 IE3-355L-4 315 1490 526 96 0.9 2 7.1 2.2 95 400



IE3-90S-4 IE3 Motor Cast Iron Body Material IP54 1.1kw With ISO/CE Certification 1



IE3-90S-4 IE3 Motor Cast Iron Body Material IP54 1.1kw With ISO/CE Certification 2

Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8





IE3 Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE3 Motor Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3. we test the material before production and three to four times when producing to ensure the goods in good quality, also we have according to request
4. we can be your OEM manufacturer with your authorization of the brand.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
