General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4

China General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4 supplier

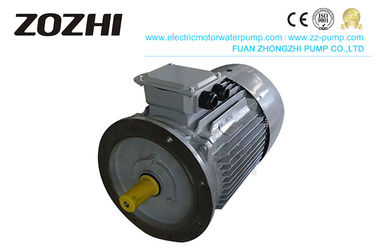

Large Image :  General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3-802-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Application: General Driving
Output: 0.75KW Pole: 4
Protection Class: IP54 Frequency: 60Hz
Insulation Class: B Rate Voltage: 400V
Body Material: Cast Iron Speed: 1430Rpm
Standard: CE,IEC60034





IE3-802-4 IE3 Motor Power Factor,IE3 Motor Specification IEC



IE3 premium efficiency motors on YouTuBe



IE3 Premium Efficiency Cast iron induction motor



Model IE3-802-4 Frame size 80
Duty S1 Rated power 0.75KW
Ambient temperature -20~40 Rated voltage 400V
Frequency 60HZ Protection class IP54
Phase 3 Pole 4P
Insulation Class B,F Efficiency IE3









General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4



Performance Chart:

NO. Type Output Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise Voltage
kW r/min (A) % CosΦ LwdB(A) V
1 IE3-801-2 0.75 2890 1.64 80.7 0.82 2.3 7 2.3 62 400
2 IE3-802-2 1.1 2890 2.31 82.7 0.83 2.2 7.3 2.3 62 400
3 IE3-90S-2 1.5 2890 3.06 84.2 0.84 2.2 7.6 2.3 67 400
4 IE3-90L-2 2.2 2890 4.35 85.9 0.85 2.2 7.6 2.3 67 400
5 IE3-100L-2 3 2895 5.71 87.1 0.87 2.2 7.8 2.3 74 400
6 IE3-112M-2 4 2910 7.45 88.1 0.88 2.2 8.3 2.3 77 400
7 IE3-132S1-2 5.5 2940 10.1 89.2 0.88 2 8.3 2.3 79 400
8 IE3-132S2-2 7.5 2940 13.7 90.1 0.88 2 7.9 2.3 79 400
9 IE3-160M1-2 11 2950 19.6 91.2 0.89 2 8.1 2.3 81 400
10 IE3-160M2-2 15 2950 26.5 91.9 0.89 2 8.1 2.3 81 400
11 IE3-160L-2 18.5 2950 32.5 92.4 0.89 2 8.2 2.3 81 400
12 IE3-180M-2 22 2960 38.5 92.7 0.89 2 8.2 2.3 83 400
13 IE3-200L1-2 30 2970 52.1 93.3 0.89 2 7.6 2.3 84 400
14 IE3-200L2-2 37 2970 64 93.7 0.89 2 7.6 2.3 84 400
15 IE3-225M-2 45 2970 76.8 94 0.9 2 7.7 2.3 86 400
16 IE3-250M-2 55 2980 93.5 94.3 0.9 2 7.7 2.3 89 400
17 IE3-280S-2 75 2980 127 94.7 0.9 1.8 7.1 2.3 91 400
18 IE3-280M-2 90 2980 152 95 0.9 1.8 7.1 2.3 91 400
19 IE3-315S-2 110 2980 185 95.2 0.9 1.8 7.1 2.3 92 400
20 IE3-315M-2 132 2980 224 94.5 0.9 1.8 7.1 2.3 92 400
21 IE3-315L1-2 160 2980 265 95.6 0.91 1.8 7.2 2.3 92 400
22 IE3-315L2-2 200 2980 331 95.8 0.91 1.8 7.2 2.2 92 400
23 IE3-355M-2 250 2980 414 95.8 0.91 1.6 7.2 2.2 100 400
24 IE3-355L-2 315 2980 522 95.8 0.91 1.6 7.2 2.2 100 400
25 IE3-802-4 0.75 1430 1.75 82.5 0.75 2.3 6.6 2.3 56 400
26 IE3-90S-4 1.1 1440 2.48 84.1 0.76 2.3 6.8 2.3 59 400
27 IE3-90L-4 1.5 1440 3.3 85.3 0.77 2.3 7 2.3 59 400
28 IE3-100L1-4 2.2 1455 4.52 86.7 0.81 2.3 7.6 2.3 64 400
29 IE3-100L2-4 3 1455 6.02 87.7 0.82 2.3 7.6 2.3 64 400
30 IE3-112M-4 4 1460 7.95 88.6 0.82 2.2 7.8 2.3 65 400
31 IE3-132S-4 5.5 1470 10.7 89.6 0.83 2 7.9 2.3 71 400
32 IE3-132M-4 7.5 1470 14.3 90.4 0.84 2 7.5 2.3 71 400
33 IE3-160M-4 11 1470 20.4 91.4 0.85 2.2 7.7 2.3 73 400
34 IE3-160L-4 15 1470 27.3 92.1 0.86 2.2 7.8 2.3 73 400
35 IE3-180M-4 18.5 1475 33.5 92.6 0.86 2 7.8 2.3 76 400
36 IE3-180L-4 22 1475 39.7 93 0.86 2 7.8 2.3 76 400
37 IE3-200L-4 30 1480 53.8 93.6 0.86 2 7.8 2.3 76 400
38 IE3-225S-4 37 1485 66.1 93.9 0.86 2 7.4 2.3 78 400
39 IE3-225M-4 45 1485 80.2 94.2 0.86 2 7.4 2.3 78 400
40 IE3-250M-4 55 1485 97.6 94.6 0.86 2 7.4 2.3 79 400
41 IE3-280S-4 75 1485 129 95 0.88 2 6.9 2.3 80 400
42 IE3-280M-4 90 1485 155 95.2 0.88 2 6.9 2.3 80 400
43 IE3-315S-4 110 1485 187 95.4 0.89 2 7 2.2 88 400
44 IE3-315M-4 132 1485 224 95.6 0.89 2 7 2.2 88 400
45 IE3-315L1-4 160 1485 271 95.8 0.89 2 7.1 2.2 88 400
46 IE3-315L2-4 200 1485 334 96 0.9 2 7.1 2.2 88 400
47 IE3-355M-4 250 1490 418 96 0.9 2 7.1 2.2 95 400
48 IE3-355L-4 315 1490 526 96 0.9 2 7.1 2.2 95 400
49 IE3-90S-6 0.75 955 1.93 78.9 0.71 2 6 2.1 57 400
50 IE3-90L-6 1.1 955 2.69 81 0.73 2 6 2.1 57 400
51 IE3-100L-6 1.5 955 3.6 82.5 0.73 2 6.5 2.1 61 400
52 IE3-112M-6 2.2 970 5.09 84.3 0.74 2 6.6 2.1 65 400
53 IE3-132S-6 3 970 6.84 85.6 0.74 2 6.8 2.1 69 400
54 IE3-132M1-6 4 970 8.99 86.8 0.74 2 6.8 2.1 69 400
55 IE3-132M2-6 5.5 970 12 88 0.75 2 7 2.1 69 400
56 IE3-160M-6 7.5 980 15.4 89.1 0.79 2 7 2.1 73 400
57 IE3-160L-6 11 980 22 90.3 0.8 2 7.2 2.1 73 400
58 IE3-180L-6 15 980 29.3 91.2 0.81 2 7.3 2.1 73 400
59 IE3-200L1-6 18.5 985 36 91.7 0.81 2 7.3 2.1 73 400
60 IE3-200L2-6 22 985 42.5 92.2 0.81 2 7.4 2.1 73 400
61 IE3-225M-6 30 985 56.2 92.9 0.83 2 6.9 2.1 74 400
62 IE3-250M-6 37 990 68.1 93.3 0.84 2 7.1 2.1 76 400
63 IE3-280S-6 45 990 81.6 93.7 0.85 2 7.3 2 78 400
64 IE3-280M-6 55 990 98.1 94.1 0.86 2 7.3 2 78 400
65 IE3-315S-6 75 990 136 94.6 0.84 2 6.6 2 83 400
66 IE3-315M-6 90 990 161 94.9 0.85 2 6.7 2 83 400
67 IE3-315L1-6 110 990 196 95.1 0.85 2 6.7 2 83 400
68 IE3-315L2-6 132 990 232 95.4 0.86 2 6.8 2 83 400
69 IE3-355M1-6 160 990 281 95.6 0.86 1.8 6.8 2 85 400
70 IE3-355M2-6 200 990 346 95.8 0.87 1.8 6.8 2 85 400
71 IE3-355L1-6 250 990 433 95.8 0.87 1.8 6.8 2 85 400
72 IE3-355L2-6 315 990 552 95.8 0.86 1.8 6.8 2 85 400

General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4



General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4

Performance comparison chart:

General Driving High Efficiency Electric Motors , IE3 Three Phase Motor IE3-802-4










Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
