High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval

China High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval supplier
High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval supplier High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval supplier

Large Image :  High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2 MS801-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IE2 Motor Output: 0.75KW/1HP
Voltage: 230/400v 60hz Low Voltage Winding Material: 100% Copper Wire
Standard: IEC 2 Housing: Aluminum
Pole: 2 Phase: 3 Phase

IE2 MS801-2 IE2 High Efficiency Motor Induction Motor,IE2 Motor Specifications





IE2 High Efficiency Motors  are manufactured according to the efficiency class system specified under IEC 60034-30 and are installed in many different industries across the globe.





Model Output Voltage Current Speed Eff P.F. Ist/In Tmax/Tn
(V) (A) (r/min) (%)
IE2 MS801-2 K0.75kw 230/400 3.0/1.73 2800 76.5 0.813 2.2 2.3




PERFORMANCE CHART:



Technical data
Model Power (V) (A) (r/min) Eff.(%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79 80 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87 0.86 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.86 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89 89.8 89.4 0.86 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90 90.5 90.3 0.86 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.72 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87 86.6 0.79 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.65 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81 83.4 83.3 0.72 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2

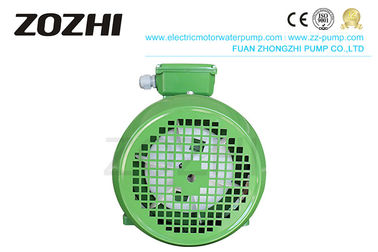

High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval

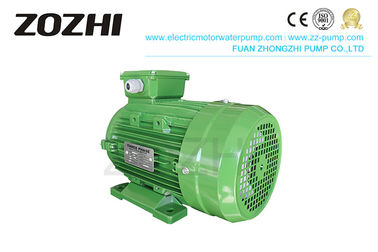

High Efficiency IE2 Motor 3 Phase MS801-2 0.75KW/1HP Aluminum Housing CE Approval

Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8

GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
