100% Copper Wire Three Phase Induction Motor , High Efficiency Motor MS802-2 IE2

China 100% Copper Wire Three Phase Induction Motor , High Efficiency Motor MS802-2 IE2 supplier

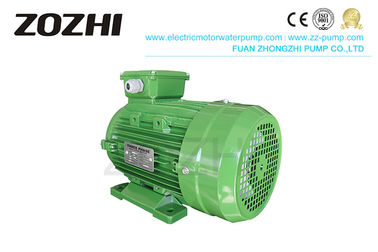

Large Image :  100% Copper Wire Three Phase Induction Motor , High Efficiency Motor MS802-2 IE2

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2 MS802-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IE2 Motor Output: 1.1KW
Voltage: 400v 60hz Low Voltage Winding Material: 100% Copper Wire
Standard: IEC 2 Housing: Aluminum
Pole: 2 Phase: 3 Phase

IE2 MS802-2 IE2 High Efficiency Motor ,Induction Motor Efficiency IE2



IE2 Hight efficiency motors on YouTuBe

IE2 High Efficiency Motor With The Mounting Dimension In Accordance With Standard IEC60034,It Has Good Features Like Optimum Structure, Attractive Appearance, Low Noise, High Efficiency, High Protection Class As Well As High Insulation Class.



Model Output Voltage Current Speed Eff P.F. Ist/In Tmax/Tn
(V) (A) (r/min) (%)
IE2 MS802-2 1.1KW/1.5HP 230/400 4.2/2.43 2800 79.0 0.8125 2.2 2.3






PERFORMANCE CHART:



100% Copper Wire Three Phase Induction Motor , High Efficiency Motor MS802-2 IE2

100% Copper Wire Three Phase Induction Motor , High Efficiency Motor MS802-2 IE2

100% Copper Wire Three Phase Induction Motor , High Efficiency Motor MS802-2 IE2

Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8

GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
