5.5KW IE3 Motor Efficiency Chart Three Phase 2 Pole IP54 Protection Class IE3-132S1-2

China 5.5KW IE3 Motor Efficiency Chart Three Phase 2 Pole IP54 Protection Class IE3-132S1-2 supplier

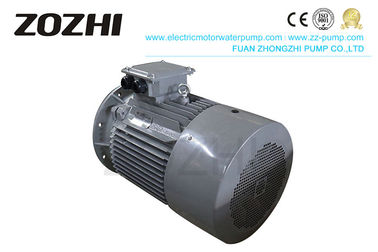

Large Image :  5.5KW IE3 Motor Efficiency Chart Three Phase 2 Pole IP54 Protection Class IE3-132S1-2

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3-132S1-2 5.5KW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Cast Iron
Output: 5.5kw Pole: 2
Protection Class: IP54 Frequency: 60Hz
Rated Voltage: 400V Insulation Class: B
Efficiency Class: IE3 Output Speed: 2940


IE3-132S1-2 5.5KW ,IE3 Motor Efficiency Chart,Three Phase Electric Motor

IE3 premium efficiency motors on YouTuBe


IE3 premium efficiency motors was the newest product in the 90S' ,its overall level has reached the same products abroad at the beginning of 90S'level. The product apply to economic lake-off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.

Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 400V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1


ModelOutput KWVoltageCurrentSpeedEffPowerLRT/RLTLRA/RLABDT/RT
(V)(A)(r/min)(%)Factor
IE3-132S1-25.540010.1294089.20.882.38.32.0






5.5KW IE3 Motor Efficiency Chart Three Phase 2 Pole IP54 Protection Class IE3-132S1-2





Performance Chart:
5.5KW IE3 Motor Efficiency Chart Three Phase 2 Pole IP54 Protection Class IE3-132S1-2
5.5KW IE3 Motor Efficiency Chart Three Phase 2 Pole IP54 Protection Class IE3-132S1-2






Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
