General Driving 3 Phase Electric Motor Premium Efficiency IE3-90L-2 2.2Kw 400V

China General Driving 3 Phase Electric Motor Premium Efficiency IE3-90L-2 2.2Kw 400V supplier

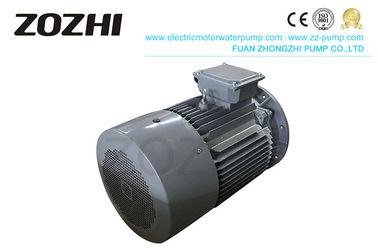

Large Image :  General Driving 3 Phase Electric Motor Premium Efficiency IE3-90L-2 2.2Kw 400V

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3-90L-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Application: General Driving
Output: 0.75kw Pole: 2
Protection Class: IP54 Frequency: 60Hz
Insulation Class: B Rate Voltage: 400V
Body Material: Cast Iron Speed: 2890Rpm
Standard: CE,IEC60034-1





IE3 Motor Protection,Three Phase Premium Efficiency Electric Motor,IE3-90L-2 2.2 Kw



IE3 premium efficiency motors on YouTuBe



IE3 premium efficiency motor  ZONGZHI Process performance motors apart:efficiency, reliability, use of leading-edge technology, and the virtually limitless options they provide for customization.



Process performance motors fulfill all international and national energy efficiency - both now and in the future.

Designed for most demanding environments and applications

Designed to last - award winning product range



General Driving 3 Phase Electric Motor Premium Efficiency IE3-90L-2 2.2Kw 400V



Performance Chart:

General Driving 3 Phase Electric Motor Premium Efficiency IE3-90L-2 2.2Kw 400V

General Driving 3 Phase Electric Motor Premium Efficiency IE3-90L-2 2.2Kw 400V



Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8







OPERATING CONDITIONS​:
Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 400V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1



Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
