IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V

China IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V supplier
IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V supplier

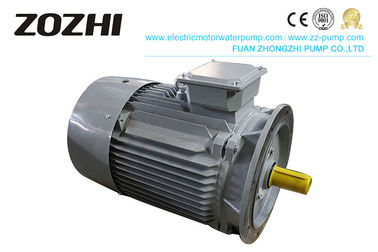

Large Image :  IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3-90S-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Cast Iron
Output: 1.5kw Pole: 2
Protection Class: IP54 Frequency: 60Hz
Rated Voltage: 400V Insulation Class: B
Efficiency Class: IE3 Output Speed: 2890





IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V





IE3 premium efficiency motors has special fan and wind path design make it low vibration and low noise.The end shield with the radiating rib makes the appearance good looking and improve the heat dissipation.The top terminal box can totate all round, as well as left or right side mounted, to meet the different requirements of our customers.



IE3 motor is design of improving the efficiency is in line with the requirements of energy saving put forward by the state for the industry of production and manufacturing.



Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 400V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1





Model Output KW Voltage Current Speed Eff Power LRT/RLT LRA/RLA BDT/RT
(V) (A) (r/min) (%) Factor
IE3-90S-2 1.5 400 3.06 2890 82.7 0.84 2.2 7.6 2.3














Performance Chart:

IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V

IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V



Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8



Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
