Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz

China Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz supplier
Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz supplier

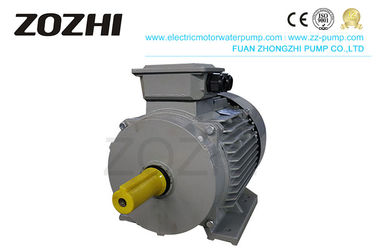

Large Image :  Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3-802-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Cast Iron
Output: 1.1kw Pole: 2
Protection Class: IP54 Frequency: 60Hz
Rated Voltage: 400V Insulation Class: B
Efficiency Class: IE3 Output Speed: 2890



IE3-802-2 1.1KW Premium Efficiency IE3 Motor Three Phase Induction Motor Pole2



IE3 premium efficiency motors on YouTuBe



Low voltage squirrel-cage IE3 premium efficiency motor are suitable for a wide range of standard drive tasks in the industrial environment. Thanks to their particular low weight, they are predestined for applications in pumps, fans, compressors, conveyor systems and lifting gear.





Model Output KW Voltage Current Speed Eff Power LRT/RLT LRA/RLA BDT/RT
(V) (A) (r/min) (%) Factor
IE3-802-2 1.1 400 2.31 2890 82.7 0.83 2.2 7.3 2.3






Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz



Performance Chart:

Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz

Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz



Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8



TECHNICAL CHARACTERISTICS


Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 400V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1




Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
