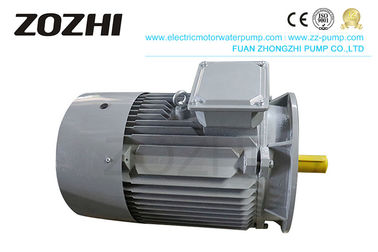

Cast Iron Asynchronous Three Phase Electric Motor IE3-801-2 0.75KW For General Driving

  • Cast Iron Asynchronous Three Phase Electric Motor IE3-801-2 0.75KW For General Driving
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number IE3-801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE3 Motor Application General Driving
Output 0.75kw Pole 2
Protection Class IP54 Frequency 60Hz
Insulation Class B
High Light

ie3 electric motors

,

ie3 premium efficiency motors
Leave a Message
Product Description





IE3-801-2 0.75KW IE3 Motor Series Three Phase Cast Iron asynchronous motors







IE3 premium efficiency energy saving high-quality electric motor CE certificated IE3 premium efficiency energy saving high-quality electric motors have the advantage of high efficiency, long working life, energy-saving, high starting torque, low noise, slight vibration, ample breakaway torque, reliability...



IE3 premium efficiency motors can be widely used in various kinds of general use machinery like fans, pumps, machine tools, compressors, transportation, etc. They can also be used in hazardous areas with oil and chemical, steel plants, mining industry.





Model Output HP KW Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 LRT/RLT LRA/RLA BDT/RG
IE3-801-2 1 0.75 400 1.64 2890 80.7 0.82 2.3 7.0



2.3






Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 400V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1



Cast Iron Asynchronous Three Phase Electric Motor IE3-801-2 0.75KW For General Driving 0



Performance Chart:

Cast Iron Asynchronous Three Phase Electric Motor IE3-801-2 0.75KW For General Driving 1

Cast Iron Asynchronous Three Phase Electric Motor IE3-801-2 0.75KW For General Driving 2



Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8











IE3 Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE3 Motor Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
