IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors

China IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors supplier
IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors supplier

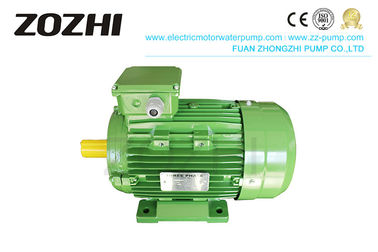

Large Image :  IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3 MS802-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Protect Feature: Totally Enclosed Body: Cast Iron
Output: 1.1KW Pole: 2
Protection Class: IP44/54 Frequency: 50Hz/60Hz
Insulation Class: B/F/H

IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors

Three Phasee MS series Aluminum

* MOTOR conforms to the IEC standard

* High efficiency

* Energy Saving

* Low noise

* Slight vibration

* Light-weight

* Easy maintenance


THREE PHASE MOTOR:


1. be suitable for many kinds of machines
2. safe and reliable
3. self-cooled squirrel-cage motor of the enclosed type
4. Use superior seton molding process
5. wide usage,

INSULATING MATERIAL:

1. Use 3940 Magnetic slot wedge, heated and extruded by epoxy resin and fiberglass.
2. Use DMD high-temperature insulating paper, combined with mylar limpness composite material and polyester non-woven fabrics thin film.
3. Use High temperature resistant 180℃ Cable line.
4. Use Oxyhydrogen carbon-free welding technology. Dense flame, strong welding and carbon embrittlement-free.



Products Details:



Site conditions Motors are suitable for the most working environment at a temperature from -15°C t0 +40°C and altitude below 1000 meters
Insulation The motors' insulation system is set to Class F(105K), examined by Class B(80K), which ensure the lifespan and reliability of the motors.
Motor protection Motors can be installed with PTC, PT100 used winding and bearing temperature measurement on request.
Voltage and frequency Standard voltage and frequency is 380V 50HZ and can be set to any single voltage in the range of 200-660V at a frequency of 50 or 60HZ. The motors work well within variations of ±5% from the rated voltage.
Vibration Motors are designed to vibration class A, vibration class B is available on request.
Duty Continuous(S1)
Cooling and ventilation The standard cooling method is totally enclosed fan cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard motors are equipped with auxiliary plastic fans.
Winding 100% Cooper Wire
Protection class The standard protection class is IP54/IP55, which can be used in the humid and dusty environment. Higher degrees of protection is available.
Quality assurance From the first line of production designing till the finishing procedure, obey ISO9001 documented quality system.



PERFORMANCE CHART:



IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors

IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors

IE3 MS802-2 1.1KW 1.5HP Three Phasee MS series Aluminum Housing Motors




GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
