Basics 3 Phase Induction Motor 4 HP / 3 KW General driving With High Start Torque

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS100L2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Product Name 3 Phase Induction Motor Application General Driving
Output 4HP / 3KW Pole 4
Efficiency IE1 Type Asynchronous Motor
Insulation Class F
High Light

three phase induction motor

,

squirrel cage electric motor

Leave a Message
Product Description

Induction Motor Basics 3 Phase Induction Motor 4 HP / 3 KW With High Start Torque





3 Phase Induction Motor Description:


1) Utilizes IP55 enclosures
2) Multiple feet locations
3)Cast iron, Aluminum frame, end shields, and base
4) High strength cable gland
5) Shaft key and protector supplied
6) Superior paint finish
7) Motors are made to heavy-duty service factors
8) Can be made with stainless steel shaft
9) Motors made for continuous S1duty, also ok with S2.S3 duty.
10) Utilizes vacuum impregnated Class F/H insulation
11) High performance and efficiency



3 Phase Induction Motor Technical Data:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
HP KW
MS100L2-4 4 3 380 50 6.78 0.82 82 1410 2.3 2.4 5



3 Phase Induction Motor Application:



MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high-quality material and conforms to the IEC standard in function, appearance, output, and other requirements.

The efficiency of the MS motor meets the EFF2 standard in E. U. and can reach the EFF1 standard if requested. In addition, MS motor has a lot of advantages, including high efficiency, energy saving, low noise, slight vibration, lightweight, small volume, reliable operation, up-to-date appearance, convenient operation, and maintenance.



Advantage:



1) Water, dust, and vermin resistant
2) Quiet operation
3) Electricity Saving
4) Easy installation (bolt-on feet or brackets as required)
5) Corrosion resistant
6) Dependable
7) Superior life
8) Reliable in country, city, or factory environments

Basics 3 Phase Induction Motor 4 HP / 3 KW General driving With High Start Torque 0

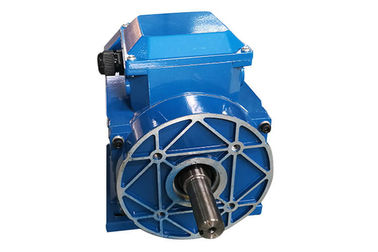

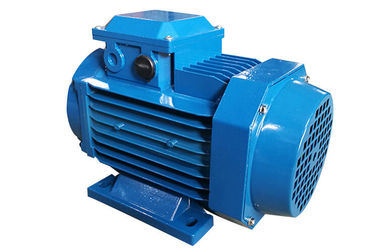

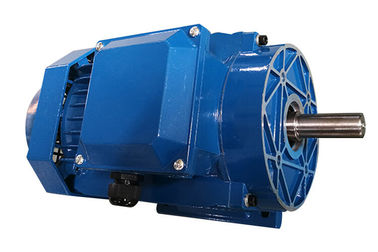

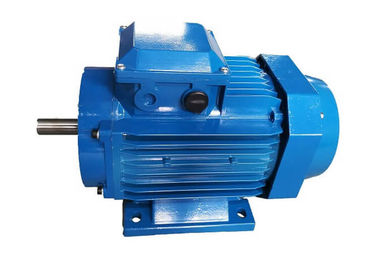

Pictures:





Basics 3 Phase Induction Motor 4 HP / 3 KW General driving With High Start Torque 1



3 Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you A factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
