IE1 3 Phase Induction Motor 400v 50Hz MS Aluminum Body Energy Saving High Efficiency

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS100L2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application General Driving
Output 4HP / 3KW Pole 4
Efficiency IE1 Type Asynchronous Motor
Insulation Class F
High Light

three phase induction motor

,

squirrel cage electric motor

Leave a Message
Product Description

IE1 Motor 3 Phase Induction Motor 400v 50Hz With Nice Appearance Motor





3 Phase Induction Motor Description:



MS Series Aluminum-Housing High-Efficiency Electric Motor


MS Aluminum Body Three Phase AC Motors

1) MS series motors are enclosed fan cooling three-phase squirrel cage induction motors. It adopts the latest design and high-quality material and conforms to the IEC standard.



2) MS series motor has many advantages, including high efficiency, energy saving, high starting torque, low noise, slight vibration, lightweight, reliable and convenient operation, easy maintenance, etc.



3) The motor is with removable feet, which are made of aluminum alloy die casting. Users could mount variously according to their needs.



3 Phase Induction Motor Technical Data:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
HP KW
MS100L2-4 4 3 380 50 6.78 0.82 82 1410 2.3 2.4 5



3 Phase Induction Motor Application:



General-purpose including cutting machines. Pumps, fans. Conveyors. Machines tools of farm duty and food process.





3 Phase Induction Motor Advantage:



Features: High efficiency and energy saving.

Low noise and slight vibration.

The insulations Class is F

The protective Classis IP54 or IP55.





IE1 3 Phase Induction Motor 400v 50Hz MS Aluminum Body Energy Saving High Efficiency 0

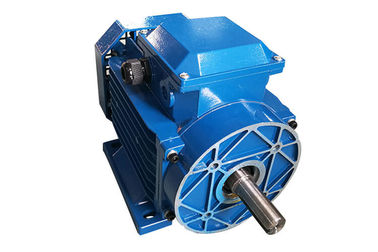

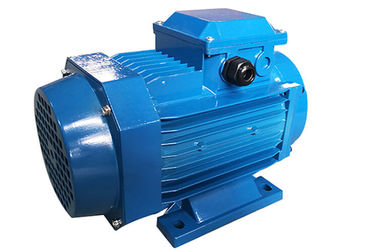

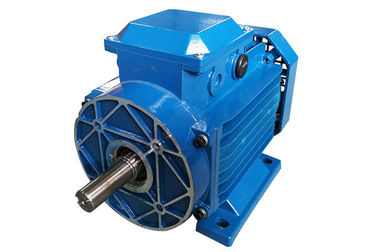

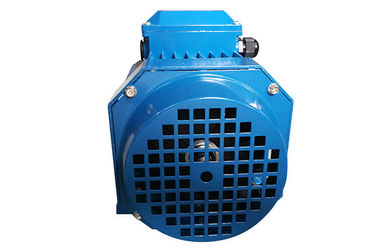

Pictures:





IE1 3 Phase Induction Motor 400v 50Hz MS Aluminum Body Energy Saving High Efficiency 1

IE1 3 Phase Induction Motor 400v 50Hz MS Aluminum Body Energy Saving High Efficiency 2



3 Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you A factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
