Asynchronous 3 Phase Induction Motor MS100L2-4 4HP / 3KW With Delta Connection

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS100L2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Product Name 3 Phase Induction Motor Application General Driving
Output 4HP / 3KW Pole 4
Efficiency IE1 Type Asynchronous Motor
Insulation Class F
High Light

three phase induction motor

,

squirrel cage electric motor

Leave a Message
Product Description

MS100L2-4 Asynchronous Motor 3 Phase Induction Motor With Delta Connection





3 Phase Induction Motor Description:



MS100L2-4 is a three-phase asynchronous induction motor with 3kw/4hp output power; The connecting type was delta connection. The latest design in its entirety is made of selected quality materials and conforms to the IEC 60034 standard.



3 Phase Induction Motor Technical Data:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
HP KW
MS100L2-4 4 3 380 50 6.78 0.82 82 1410 2.3 2.4 5



3 Phase Induction Motor Application:



They can be used in various fields, such as machining equipment/tools, pumps, fans, and compressors. They are also suitable for use in non-flammable, non-explosive, and non-corrosive environments in transportation, mixing, printing, food processing, and agriculture. The mounting dimensions and power efficiency level comply with the IEC IE1 standard.



Advantage:



The three-phase induction motors are simple in construction, rugged, low cost, and easy to maintain. In addition, they run at a constant speed from no-load to full load. Therefore, these motors are frequently used in the industry.

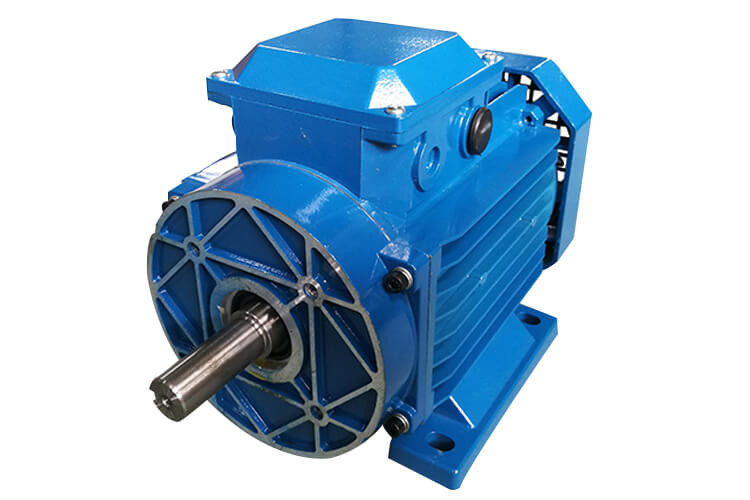

Asynchronous 3 Phase Induction Motor MS100L2-4 4HP / 3KW With Delta Connection 0

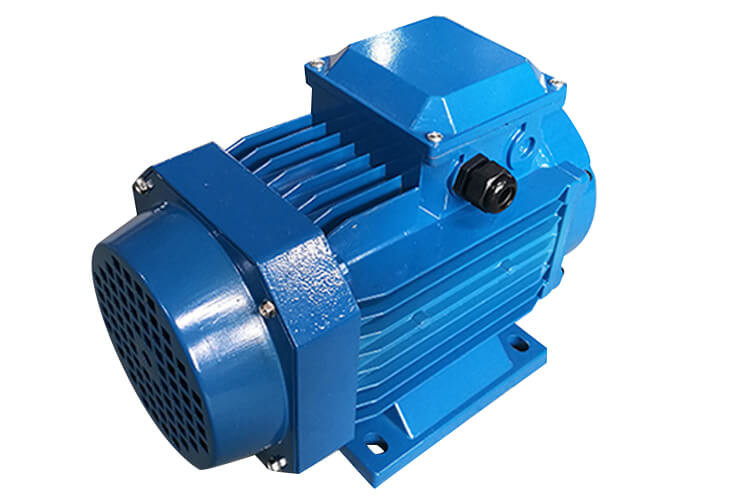

Asynchronous 3 Phase Induction Motor MS100L2-4 4HP / 3KW With Delta Connection 1







Pictures:

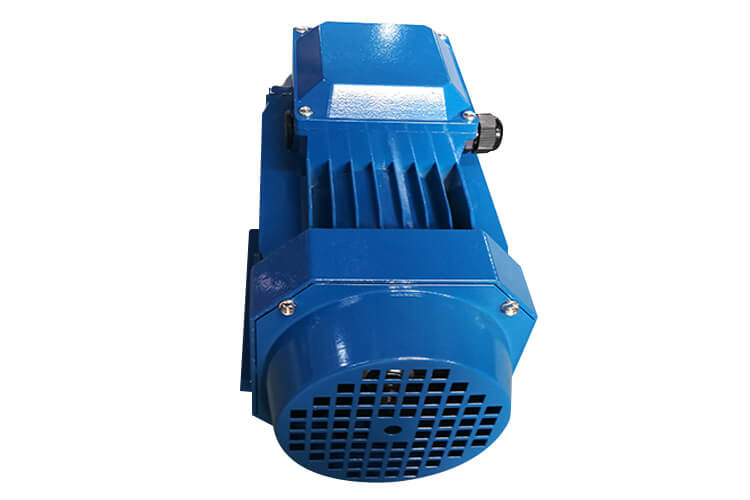

Asynchronous 3 Phase Induction Motor MS100L2-4 4HP / 3KW With Delta Connection 2



3 Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you A factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
