Asynchronous Single Phase Induction Motor MY Series My801-2 2800 Rpm For Pump

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 1 HP / 7.5 KW Pole 2
Efficiency IE1,IE2 Type Asynchronous Motor
Insulation Class B/F/H
High Light

single phase electric motor

,

single phase capacitor start motor

Leave a Message
Product Description



Asynchronous Single Phase Induction Motor MY Series My801-2 2800 Rpm For Pump



DESCRIPTIONS:



MY series Single Phase Aluminium Housing Capacitor Start Induction Motor
MY series of single-phase aluminum motors are acknowledged as having a name for quality and
reliability. They are suitable for driving small-type machine tools, water pumps, etc., especially for family
workshops where only single-phase current supply is available.



Single Phase Induction Motor APPLICATION:


You can use them in various fields, such as machining equipment/tools, pumps, fans, and compressors. They are also suitable for use in non-flammable, non-explosive, and non-corrosive environments in transportation, mixing, printing, food processing, and agriculture. The mounting dimensions and power efficiency level comply with both the IEC IE1 standard.



Single Phase Induction Motor OPERATING LIMITS:



Ambient temperature:-15℃≦0≦40℃ Duty:  S1(continuous)
Protection:IP44/IP54/IP55 Above sea level: not exceed 1000m
Insulation Class: B/F/H Cooling method: ICO141
Rated voltage:380V or any voltage between 220-760V Connection:star-connection for up to 4HP,
Frequency: 50HZ/60HZ delta-connection for 5HP and above.





PERFORMANCE CHART:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MY631-2 0.25 0.18 220 50 1.62 0.9 56 2800 0.8 1.7
MY632-2 0.33 0.25 2.06 0.92 60 2800 0.8 1.7
MY711-2 0.5 0.37 2.86 0.95 67 2800 0.7 1.7
MY712-2 0.75 0.55 4.05 0.95 70 2800 0.7 1.7
MY801-2 1 0.75 5.07 0.96 72 2800 0.65 1.7
MY802-2 1.5 1.1 7.16 0.97 75 2800 0.6 1.7
MY90S-2 2 1.5 9.57 0.99 76 2800 0.6 1.7
MY631-4 0.16 0.12 1.17 0.9 54 1400 0.9 1.7
MY632-4 0.25 0.18 1.65 0.92 58 1400 0.8 1.7
MY711-4 0.33 0.25 2.04 0.93 62 1400 0.8 1.7
MY712-4 0.5 0.37 2.96 0.93 65 1400 0.7 1.7
MY801-4 0.75 0.55 4.05 0.95 68 1400 0.7 1.7
MY802-4 1 0.75 5.52 0.95 71 1400 0.65 1.7
MY90S-4 1.5 1.1 7.29 0.98 73 1400 0.6 1.7
MY90L-4 2 1.5 7.55 0.99 75 1400 0.6 1.7

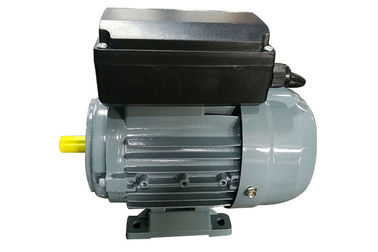

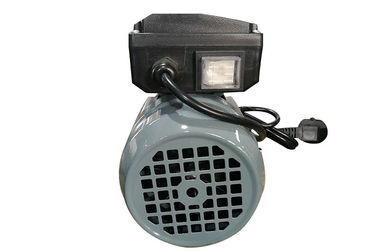

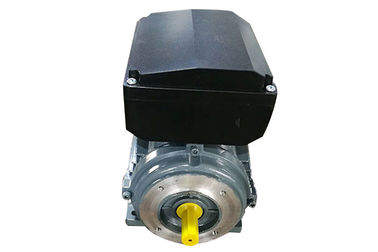

Picture:

electric motor





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
