Compact Dimension Single Phase Electric Motor 3KW 4HP YC132SA-4
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Single Phase Induction Motor | Power | 3.0/4 |
|---|---|---|---|
| Phase | 1 Ph | Current | 22.4 |
| Frequency | 50 Hz | Pole | 4 |
| High Light | Compact Dimension Single Phase Electric Motor,YC132SA-4 Single Phase Electric Motor,4HP Single Phase Capacitor Motor |
||
Product Description

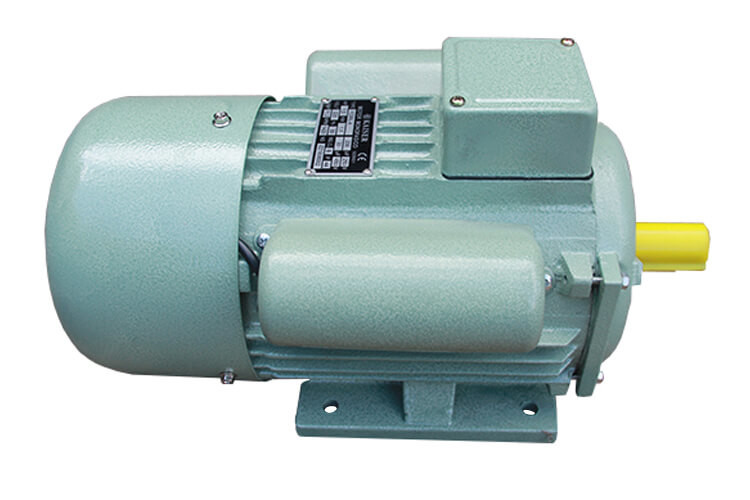

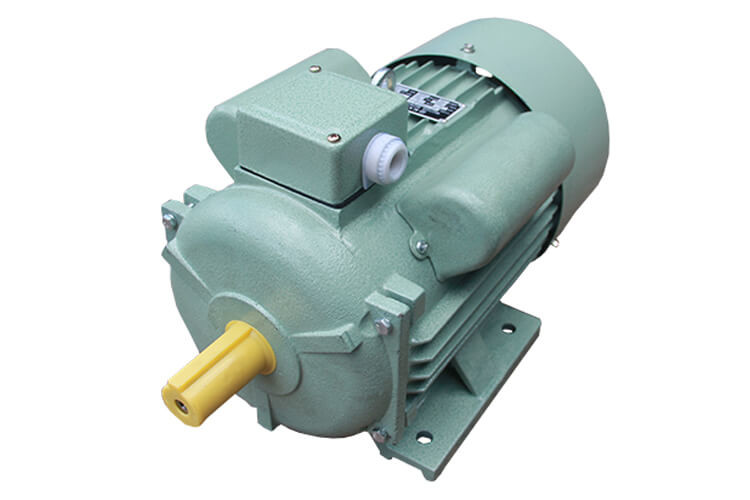

3 KW 4 HP Single Phase Electric Motor Compact Dimension YC132SA-4
Single Phase Induction Motor Description:
YC Series Single-phase asynchronous motor is designed and manufactured according to the national standard, newly developed by our company with low noise, compact dimension, lightweight, easy Maintenance, etc.
| High-Efficiency AC motor | ||
| Productor name | AC motor | Good after-sales service is the root of enterprise survival. Win-Win cooperation |
| Color | Customizable | |
| Material | CAST IRON | |
| Function | These motors also concentrate on the advantages of large starting torque, smooth turning, low- temperature rise, low noise, and great overload performance. | |
| Applicable | They are suitable for powering small types of drilling machines and water pumps, especially for family workshops where only a single-phase current supply is available. | |
Single Phase Induction Motor Technical data:
| Model | Output | Voltage (V) | Current (A) | Speed (r/min) | Eff (%) | Power Factor | Tstart/Tn | Ist/In | Tmax/Tn | |||||||||||||
| YC132SA-4 | 4 | 3 | 220 | 22.4 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 | ||||||||||||
Other voltages and frequencies available on request
Applications:
YC series single-phase capacitor start and capacitor running electric motor are suitable for the air compressor, water pump, and other equipment requiring high torque.
Single Phase Induction Motor Advantages:
1. High torque
2. Steady running
3. Lower noise
4. Greater overload performance
Working conditions:
| Ambient temperature:-15℃＜0＜40℃ | |||
| Ambient temperature: not exceed 1000 meters | |||
| Rated voltage: 220 V | |||
| Rated frequency: 50 Hz/60 Hz | |||
| Duty/Rating:Continuous(running) | |||
| Insulation class: Class B/F |
| | |
| | |
| | |
Single Phase Induction Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1). We are delighted that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
1 year.
