3.4A Current Single Phase Induction Motor , Asynchronous Electric Motor 0.33 HP

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC80A-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Single Phase Induction Motor Power 0.25/0.33
Phase 1 Ph Current 3.4
Frequency 50 Hz Pole 4
High Light

single phase electric motor

,

single phase capacitor start motor

Leave a Message
Product Description

3.4A Current Single Phase Induction Motor, Asynchronous Electric Motor 0.33 HP



Description:



YC series heavy-duty single-phase motors are suitable for powering small machine tools and water pumps, especially for family workshops where only a single-phase current supply is available. Motors of the series are integrated with up-to-date design, built with the best quality materials. As a result, they possess the features of a pleasant-looking appearance, outstanding performance, easy maintenance, and reliable running. In addition, the designations, signs, and nominal values are all in conformity with I. E. C. Standards.



YC series protected motors are of IP44 totally enclosed fan cooling type. They all concentrate on the advantages of high starting torque, smooth running, low-temperature rise, low noise, and greater overload performance.



Single Phase Induction Motor Technical data:



Model

Output

HP              KW

Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0 1.8

                                                                                    Other voltages and frequencies available on request

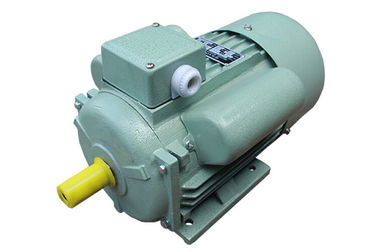

3.4A Current Single Phase Induction Motor , Asynchronous Electric Motor 0.33 HP 0



Applications:



YC series single-phase capacitor start and capacitor running electric motor are suitable for the air compressors, water pump, and other equipment requiring high torque.



Single Phase Induction Motor Advantages:



1. The mounting dimension is fully conformed with the IEC standard.
2. High starting torque, smooth turning.
3. Low-temperature rise.
4. Low noise.
5. Slight vibration.






Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F

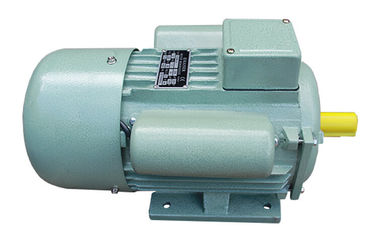

3.4A Current Single Phase Induction Motor , Asynchronous Electric Motor 0.33 HP 1

3.4A Current Single Phase Induction Motor , Asynchronous Electric Motor 0.33 HP 2

Single Phase Induction Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
