Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor

China Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor supplier
Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor supplier Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor supplier

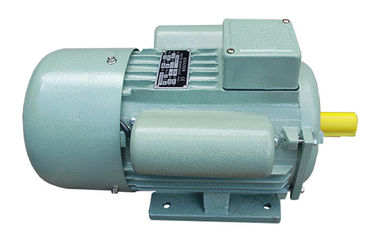

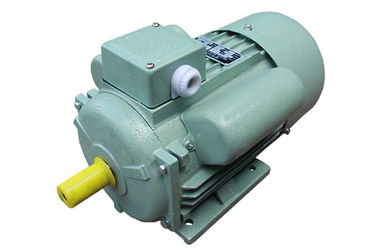

Large Image :  Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: Y-112M-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Item Name: Single Phase Induction Motor Power: 2.2/3
Phase: 1 Ph Current: 16.5
Frequency: 50 Hz Pole: 2
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

Y-112M-2 2.2 KW 3 HP 220 V 3000 RPM 50 HZ Squirrel Cage Ac Asynchronous Electric Single Phase Induction Motor



Description:


YC series are single-phase asynchronous motors. It is with features like simple structure, reliable operation, easy maintenance, superior technical and economic indicators. With a high starting torque, strong overload
characteristics, the B class insulation, shell protection rating of IP44, cooling method for IG411, it is one of the most popular products of our factory.



Technical data:



Model Output HP KW Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
Y-112M-2     3 2.2 220 16.5 2900 74 84.8 2.1 7.0 1.8

                                                                                    Other voltages and frequencies available on request

  Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor 0



Applications:



YC series single phase capacitor start and capacitor running electric motor are suitable for the air compressors, water pump and other equipment requiring high torque.



Advantages:



1. High torque
2. Steady running
3. Lower noise
4. Greater overload performance



Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F



Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor 1

Strong Overload Electric Motor Single Phase 220 Voltage 84.8 Power Factor 2

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
