Easy Operation Single Phase Induction Motor For Electric Machine Driving YC132M-4

China Easy Operation Single Phase Induction Motor For Electric Machine Driving YC132M-4 supplier
Easy Operation Single Phase Induction Motor For Electric Machine Driving YC132M-4 supplier Easy Operation Single Phase Induction Motor For Electric Machine Driving YC132M-4 supplier

Large Image :  Easy Operation Single Phase Induction Motor For Electric Machine Driving YC132M-4

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC132M-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Item Name: Single Phase Induction Motor Power: 5.5/7.5
Phase: 1 Ph Current: 30.5
Frequency: 50 Hz Pole: 4
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

YC132M-4 Single Phase Induction Motor Easy To Operate For Electric Machine Driving



Description:



YC series motors are enclosed fan-cooled type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque while 60Hz is 2.75 times more. Capacitors start and run type for Motors 4HP and above, it has the following features: high starting torque, smooth running, low-temperature rise, low noise, and greater overload performance.



PIctures:

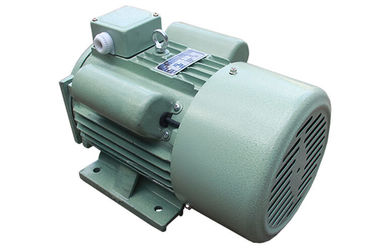

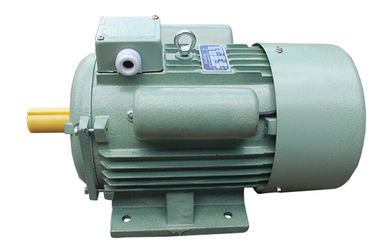

YC motor

Technical data:



Model

Output

HP        KW

Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
YC132M-4 7.5 5.5 220 30.5 1450 81 0.95 2.1 6.5 1.8

                                                                                    Other voltages and frequencies available on request







Applications:



The products have been widely used in the air compressor, pump, refrigerator, washing machine, medical equipment, woodworking machinery, all kinds of agricultural machinery and so on.YC motor series have Protection Class of E or B, Cooling Method of IC411.



Advantages:



safe and reliable operation



nice appearance



convenient maintenance



meet the IEC standard good performance





Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F



Easy Operation Single Phase Induction Motor For Electric Machine Driving YC132M-4 1

motor data

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
