Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption

China Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption supplier
Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption supplier Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption supplier Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption supplier Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption supplier

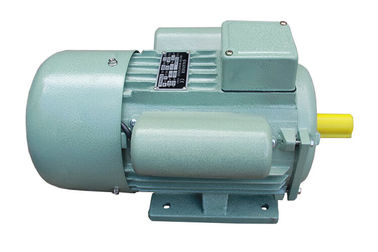

Large Image :  Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC112M1-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Item Name: Single Phase Induction Motor Power: 2.2/3
Phase: 1 Ph Current: 18.5
Frequency: 50 Hz Pole: 4
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

Low Start Torque Single Phase Induction Motor 2.2 KW For Long Time Work



Description:



YC series single-phase induction motor is designed and manufactured according to THE national standard, newly developed by our company with low noise, compact construction, light weight, easy maintenance, etc



Technical data:



Model

Output

HP     KW

Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
                    220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8

                                                                                    Other voltages and frequencies available on request





Applications:



These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small size machines,etc.especially for the occasion where only single-phase power supply is available.



Advantages:



1. Low noise

2. Long life

3. Power saving

4. Slight vibration

5. It is newly designed in conformity with the relevant rules of IEC standards, Strictly and Perfect Management is guaranteed for Production




PIcture:

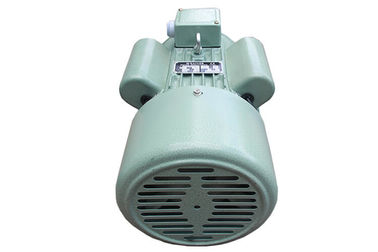

Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption 0



Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F

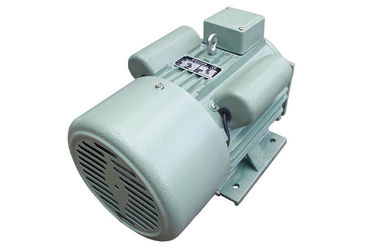

Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption 1

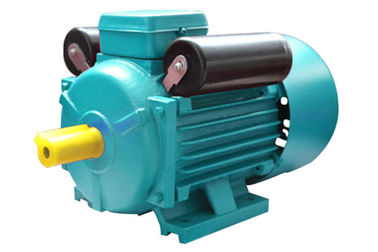

Low Start Torque Single Phase Electric Motor 2.2 KW Lower Power Consumption 2

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
