Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery

China Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery supplier
Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery supplier Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery supplier Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery supplier

Large Image :  Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC100L-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Item Name: Single Phase Induction Motor Power: 1.5/2
Phase: 1 Ph Current: 13.5
Frequency: 50 Hz Pole: 4
High Light:

single phase electric motor

,

single phase asynchronous motor

Recording Meters Home Electric Appliance Single Phase Induction Motor YC100L-4 1.5 KW



Description:



Single Phase Motor is a fully enclosed single- phase asynchronous motor with the latest design. With features like the simple structure, reliable performance, easy maintenance and achievement of technical-economic targets



Technical data:



Model

Output

HP     KW

Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
                    220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8

                                                                                    Other voltages and frequencies available on request





Applications:



The products have been widely used in the air compressor, pump, refrigerator, washing machine, medical equipment, woodworking machinery, all kinds of agricultural machinery and so on.YC motor series have Protection Class of E or B, Cooling Method of IC411.



Advantages:



1. Low noise

2. Long life

3. Power saving

4. Slight vibration

5. It is newly designed in conformity with the relevant rules of IEC standards, Strictly and Perfect Management is guaranteed for Production




Pictures:

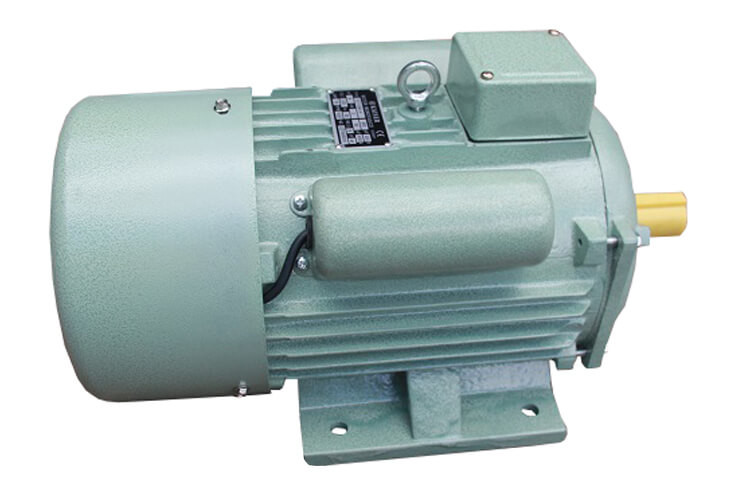

Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery 0

Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F

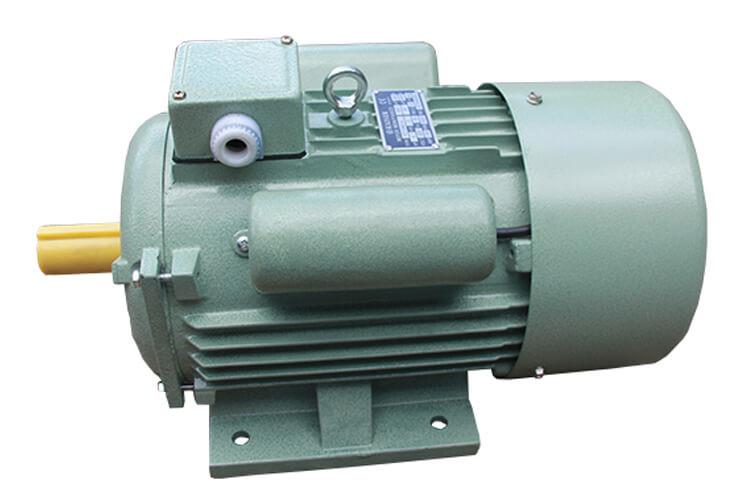

Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery 1

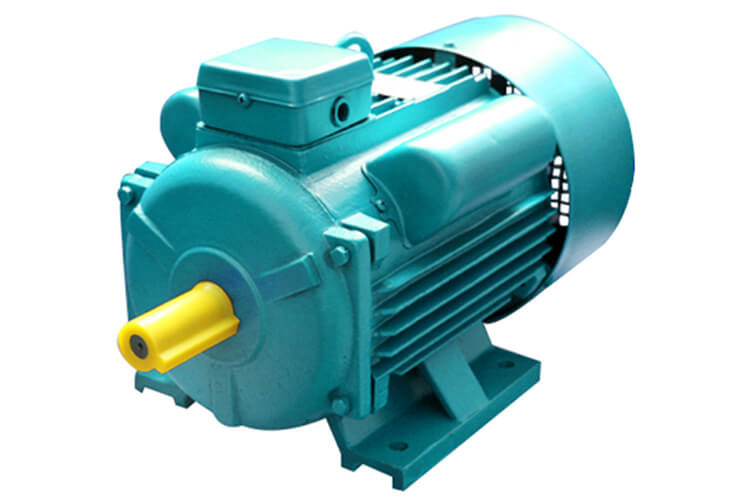

Home Electrical Induction Motor 1 Phase 1500r / Min For Agricultural Machinery 2

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
