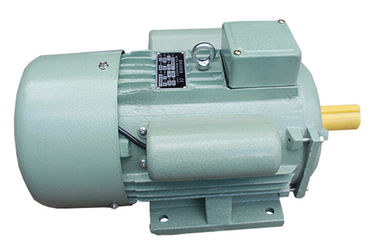

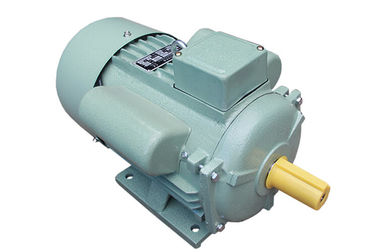

1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator

China 1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator supplier
1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator supplier 1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator supplier

Large Image :  1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC90L-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Item Name: Single Phase Induction Motor Power: 0.75/1
Phase: 1 Ph Current: 10.4
Frequency: 50 Hz Pole: 4
High Light:

single phase electric motor

,

single phase asynchronous motor

1.1 kW 1.5 Hz 220 V 50 Hz Single Phase Induction Motor For Refrigerator



Description:



YC series are up-to-grade designs. The materials it used are of good quality. The professional workers make it solid so that it can provide with long service.



Technical data:



Model Output HP KW Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC90L-4 1.5 1.1 220 10.4 1450 70 0.68 2.4 6.5 2.8

                                                                                    Other voltages and frequencies available on request

1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator 0



Applications:



These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small size machines,etc.especially for the occasion where only single-phase power supply is available.



Advantages:



1. safe and reliable operation

2. nice appearance

3. convenient maintenance

4. meet the IEC standard good performance



Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F



1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator 1

1.1 KW 1 Phase Electric Motor 220 V 50 Hz 4 Poles For Refrigerator 2

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
