1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans

China 1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans supplier
1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans supplier 1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans supplier 1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans supplier

Large Image :  1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC80B-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Item Name: Single Phase Induction Motor Power: 0.37/0.5
Phase: 1 Ph Current: 4.5
Frequency: 50 Hz Pole: 4
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

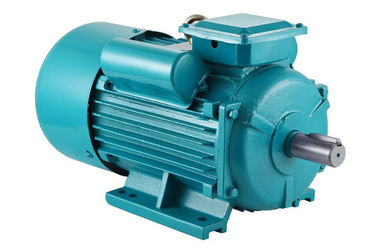

1500 R/Min 50 Hz 0.37 KW Single Phase Induction Motor For Medical Instruments And Fans





Description:



YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque while 60Hz is 2.75 times more. Capacitors start and run type for Motors 4HP and above, it has the following features: high starting torque, smooth running, low-temperature rise, low noise, and greater overload performance.



Technical data:





Model

       Output

 HP          KW

Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC80B-4 0.5 0.37 220 4.5 1450 60 0.62 2.8 6.0 1.8

                                                                                Other voltages and frequencies available on request



1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans 0

Applications:



The products have been widely used in the air compressor, pump, refrigerator, washing machine, medical equipment, woodworking machinery, all kinds of agricultural machinery and so on.YC motor series have Protection Class of E or B, Cooling Method of IC411.



Advantages:



1. suitable torque
2. Steady running
3. Lower noise
4. Greater overload performance





Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F

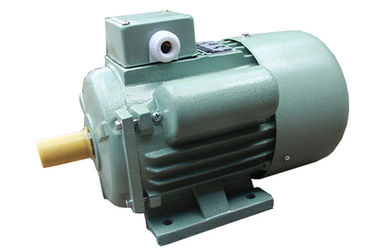

1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans 1

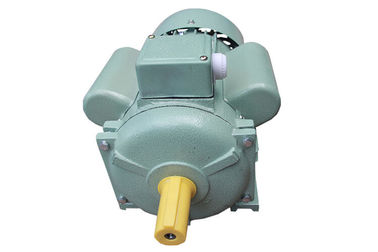

1500 R / Min Single Phase Induction Motor For Medical Instruments And Fans 2

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
