Single Phase Induction Motor 0.37 KW 0.6 HP 50HZ For Water Pumps Driving

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC80A-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Single Phase Induction Motor Power 037 KW/0.6 Hz
Phase 1 Ph Current 3.5
Frequency 50 Hz Pole 2
High Light

single phase capacitor start motor

,

single phase asynchronous motor

Leave a Message
Product Description

Single Phase Induction Motor 0.37 KW 0.6 HP 50HZ For Water Pumps Driving.





Single Phase Induction Motor Description:



YC series heavy-duty single-phase motors are suitable for small-size machine tools and water pumps, especially for family workshops where only single-phase power is supplied. This series of motors are designed with the latest technology, manufactured with quality materials, have the following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.



Technical data:



Model Output HP KW Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 3000r/min (2 Poles)
YC80A-2     0.5 0.37 220 3.5 2880 62 73.8 2.8 6.2 1.8

                                                                                    Other voltages and frequencies available on request

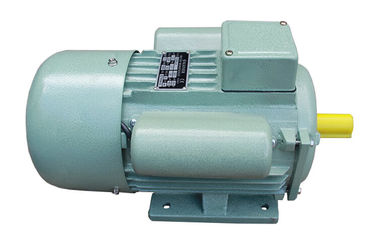

Single Phase Induction Motor 0.37 KW 0.6 HP 50HZ For  Water Pumps Driving 0

Single Phase Induction Motor Applications:



The products have been widely used in the air compressor, pump, refrigerator, washing machine, medical equipment, woodworking machinery, all kinds of agricultural machinery, etc.



Advantages:



safe and reliable operation nice appearance convenient maintenance meet the IEC standard good performance



Working conditions:



Ambient temperature:-15℃<0<40℃
Ambient temperature: not exceed 1000meters
Rated voltage:220V
Rated frequency:50Hz/60Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F

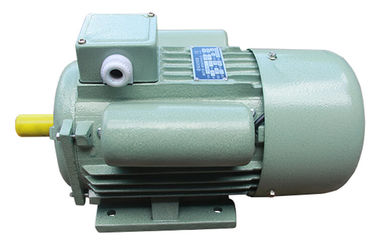

Single Phase Induction Motor 0.37 KW 0.6 HP 50HZ For  Water Pumps Driving 1

Single Phase Induction Motor 0.37 KW 0.6 HP 50HZ For  Water Pumps Driving 2

Single Phase Induction Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
