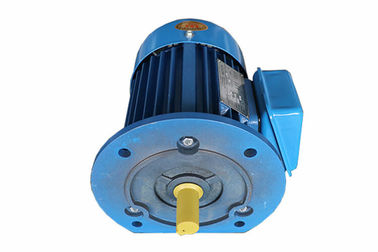

Low Voltage IE2 Motor Electric Cast Iron Shell 5.5KW 7.5HP 380V 50HZ Y Series

China Low Voltage IE2 Motor Electric Cast Iron Shell 5.5KW 7.5HP 380V 50HZ Y Series supplier

Large Image :  Low Voltage IE2 Motor Electric Cast Iron Shell 5.5KW 7.5HP 380V 50HZ Y Series

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y-132S-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IEC Standard Motor Output: 5.5-7.5
Voltage: 380v 50hz Low Voltage Winding Material: 100% Copper
Standard: IEC 3 Housing: Cast Iron
Pole: 4 Phase: 3 Phase

Y Series IEC Standard Motor Electric Motors Cast Iron Shell 5.5KW 7.5HP 380V 50HZ Low Voltage



Descriptions:



Y series motor which adopting the latest design and high-quality material .and conforms to the IEC standard. The efficiency of motor meets the IEC60034 standard in Europe, and EFF1 standard if request. The motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, lightweight .convenient operation, and maintenance. The motor with removable feet is made of aluminum - alloy die casting. a user could various mounting mode available.





Technical data:



Model Output HP KW Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
Y-132S-4 7.5 5.5 11.69 1440 85.5 0.84 84.2 0.78 2.2 7.0 2.3

                                                                                   Other voltages and frequencies available on request

Applications:



The Series motor is fit for the common sites and concise machines that have no special requirements including, air-compressor, pump, fan, medical apparatus and instruments, small Machines, etc.



Advantages:



1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance



Working conditions:



Ambient temperature: -15℃≤~≤40℃
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz, 60Hz
Protection class: lP44. IP54. lP55
Insulation class: B. F. H
Altitude: not exceed 1000m
Cooling method: lCO141
Duty: S1(continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above








Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:



1. Directly factory sale

2.Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
