4KW IEC Standard Motor Y-112M-4 Food General Driving Mix Stirring Machines Applied

China 4KW IEC Standard Motor Y-112M-4 Food General Driving Mix Stirring Machines Applied supplier
4KW IEC Standard Motor Y-112M-4 Food General Driving Mix Stirring Machines Applied supplier

Large Image :  4KW IEC Standard Motor Y-112M-4 Food General Driving Mix Stirring Machines Applied

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y-112M-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IEC Standard Motor Output: 4.0/5.5
Voltage: 380v 50hz Low Voltage Winding Material: 100% Copper
Standard: IEC 3 Housing: Cast Iron
Pole: 4 Phase: 3 Phase
High Light:

high efficiency ac motor

,

three phase induction motor

4KW IEC Standard Motor Y-112M-4 Food General Driving Mix Stirring Machines Applied



Descriptions:



Y series is one of the best seller products of our factory. Y  series is designed under the IEC standard. With a novel structure, beautiful shape, low noise, little vibration, high power, high starting torque, use the convenient maintenance and so on.





Technical data:



Model Output HP KW Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
Y-112M-4 5.5 4 8.77 1440 84.5 0.82 83.3 0.76 2.2 7.0 2.3

                                                                                   Other voltages and frequencies available on request

Applications:



This series motor is widely used in machinery and equipment without special requirements such as agricultural machinery, food machinery, fans, pumps, machine tools, mixing stirring machines, air compressors, etc…



Advantages:



1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance



Working conditions:



Ambient temperature: -15℃≤~≤40℃
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz, 60Hz
Protection class: lP44. IP54. lP55
Insulation class: B. F. H
Altitude: not exceed 1000m
Cooling method: lCO141
Duty: S1(continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above

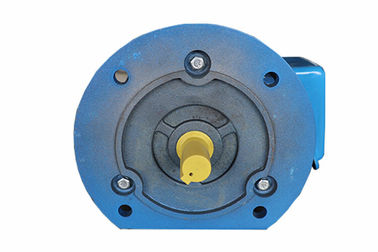

4KW IEC Standard Motor Y-112M-4 Food General Driving Mix Stirring Machines Applied 0




Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:



1. Directly factory sale

2.Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
