Y-100L2 Y Series IEC Standard Motor IEC34-1 / JB/T9616-199 3KW 4HP Three Phase

China Y-100L2 Y Series IEC Standard Motor IEC34-1 / JB/T9616-199 3KW 4HP Three Phase supplier

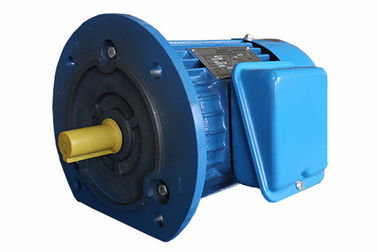

Large Image :  Y-100L2 Y Series IEC Standard Motor IEC34-1 / JB/T9616-199 3KW 4HP Three Phase

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y-100L2-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IEC Standard Motor Output: 3.0/4
Voltage: 380v 50hz Low Voltage Winding Material: 100% Copper
Standard: IEC 3 Housing: Cast Iron
Pole: 4 Phase: 3 Phase

Y-100L2 Y Series IEC Standard Motor IEC34-1 / JB/T9616-199 3KW 4HP Three Phase



Descriptions:



Y Series motor are totally enclosed fan cooled(TEFC), three-phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC34-1 and JB/T9616-1999, enjoys international interchangeable features.


Y series motors have outstanding performance, such as high efficiency, less consumption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.



Technical data:



Model Output HP KW Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
Y-100L2-4 4 3 6.82 1430 82.5 0.81 81.6 0.75 2.2 7.0 2.3

                                                                                   Other voltages and frequencies available on request

Applications:



1 water pump

2 big fan

3 food machines

4 gear motor

5 compressors



Advantages:



1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance



Working conditions:



Ambient temperature: -15℃≤~≤40℃
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz, 60Hz
Protection class: lP44. IP54. lP55
Insulation class: B. F. H
Altitude: not exceed 1000m
Cooling method: lCO141
Duty: S1(continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above



Y-100L2 Y Series IEC Standard Motor IEC34-1 / JB/T9616-199 3KW 4HP Three Phase

Y-100L2 Y Series IEC Standard Motor IEC34-1 / JB/T9616-199 3KW 4HP Three Phase






Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:



1. Directly factory sale

2.Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
