Y-802-4 4 Holes 0.75 KW Three Phase Induction Motor IEC Standard Motor Cast Iron Housing

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number Y-802-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 0.75/1
Voltage 380v 50hz Low Voltage Winding Material 100% Copper
Standard IEC 3 Housing Cast Iron
Pole 4 Phase 3 Phase
High Light

high efficiency induction motor

,

high efficiency ac motor

Leave a Message
Product Description

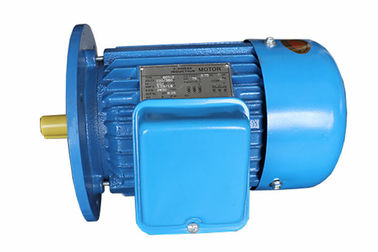

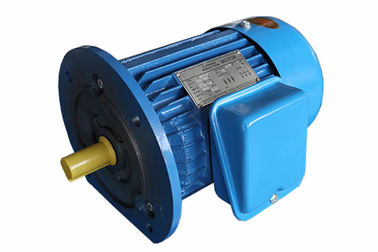

Y-802-4 4 Holes 0.75 KW Three Phase Induction Motor IEC Standard Motor Cast Iron Housing



Descriptions:

Y series is one of the best seller products of our factory.



Y  series is designed under the IEC standard. With a novel structure, beautiful shape, low noise, slight vibration, high power, high starting torque, convenient maintenance, etc.



IE2 Motor Technical data:



Model Output HP KW Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Eff
(%)
Power
Factor
Start/Tn Ist/In Tmax/Tn
Y-802-4 1 0.75 2.01 1390 74.5 0.76 73 0.67 2.3 6.0 2.3

                                                                                   Other voltages and frequencies available on request



IE2 Motor Applications:



The Series motor fits common sites and concise machines with no special requirements, including air-compressor, pump, fan, medical apparatus and instruments, small appliances, etc.



Advantages:



1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance

Working conditions:



Ambient temperature: -15℃≤~≤40℃
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz, 60Hz
Protection class: lP44. IP54. lP55
Insulation class: B. F. H
Altitude: not exceed 1000m
Cooling method: lCO141
Duty: S1(continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above








IE2 Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:



1. Directly factory sale

2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
