Electric Motor MY Series Single Phase Electric Motor For Cooling Fan

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY631-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Cooling Fan Driving
Output 0.16HP / 0.125KW Pole 4
Protection Class IP54 Frequency 50Hz
Insulation Class F Type Asynchronous Motor
High Light

single phase capacitor start motor

,

single phase asynchronous motor

Leave a Message
Product Description

Electric Motor MY Series Single Phase Induction Motor Easy to Operate For Cooling Fan


DESCRIPTION:

MY one phase induction motor had below feature:
1) Great structure: Totally enclosed fan cooled single phase squirrel cage induction motor
2) Widely function air compressors, pumps, fans, refrigeration, medical instruments as well as small machines, etc., especially for an occasion where the only single-phase power supply is available.

Single Phase Induction Motor TECHNICAL DATA:

ModelPower(V)(HZ)Current (A)Power FactorEff(%)Speed (r/min)Tstart/TnTmax/Tn
HPKW
MY631-40.160.12220501.170.95414000.91.7



INSTALLATION SIZE AND OVERALL DIMENSION:



Frame No.Installation SizeInstallation Size For B14Installation Size For B5Overall Dimension
ABCDEFGHKMNPSTMNPSTABACADHDL
631008040112348.5637756090M52.511595140103130130115185230

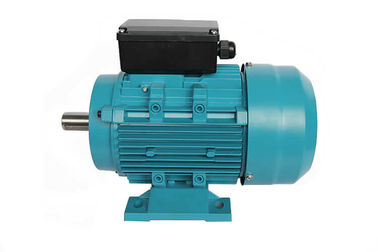

Electric Motor MY Series Single Phase Electric Motor For Cooling Fan 0

Single Phase Induction Motor APPLICATION:

1. For centrifugal water pump

2. For colling fan

3. Cooling machine

4. Drilling machine

OPERATING CONDITIONS:

Ambient temperature-15°c to 40 °c
Altitude≤1000m
Rated voltage220V, 230V, 240V, 110V, 115V, 120V, etc
Rated frequency50HZ, 60HZ, 50HZ/60HZ
DutyContinuous(S1)
Insulation classClass B, Class F
Protection classIP44, IP54, IP55
Cooling methodIC0141

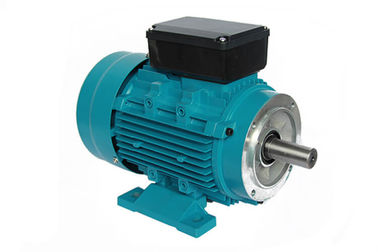

 Electric Motor MY Series Single Phase Electric Motor For Cooling Fan 1

Single Phase Induction Motor GUARANTEE:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
