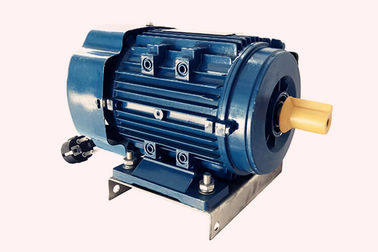

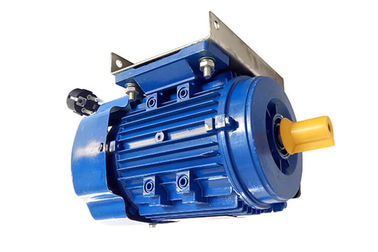

Figure MY712-2 Single Phase Capacitor Run Motor 0.75HP 230v 50Hz For Crushers

  • Figure MY712-2 Single Phase Capacitor Run Motor 0.75HP 230v 50Hz For Crushers
  • Figure MY712-2 Single Phase Capacitor Run Motor 0.75HP 230v 50Hz For Crushers
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY712-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Phase 1 Phase
Output 0.75HP Pole 2
IM B34 Frequency 50Hz
Insulation Class B Frame 71#
High Light

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

Figure MY712-2 Single Phase Capacitor Run Motor 0.75HP 230v 50Hz For Crushers



DESCRIPTION:



Our company has mastered the art of offering single-phase induction motors to clients. Single-phase induction motor is manufactured using premium quality components and sophisticated technology under the supervision of skilled professionals with set industrial guidelines.



Single Phase Induction Motor TECHNICAL DATA:



Model Power (V) (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MY711-2 0.5 0.37 220 50 2.86 0.95 67 2800 0.7 1.7



Single Phase Induction Motor APPLICATION:



1.  Crushers



2.  Water pressure boosting



3.  Water pressure boosting



4. Garden spraying



5. Material Handling Machine



6. Farmland garden irrigation



CONTRAST ADVANTAGE:





1.  Span a long lifetime



2. Minimal vibration



3.   Quite low noise and reliable operation



4.  Easy to operate



OPERATING CONDITIONS:



1. Ambient temperature: -15℃≤θ≤60℃



2. Altitude: ≤1000m



3. Protection class: IP54



4. Insulation class: class F



5. Rated voltage: 220V, other voltage on request



6. Cooling type: IC 0141



7. Duty: Continuous(S1)



8. Rated frequency: 50HZ, other frequency on request



Basic Data For Single Phase Motor



No. Brand Name: ZHONGZHI
1 Model Number:  MY
2 Type: Single Phase Induction Motor
3 Structure: AC Asynchronous Motor
4 Place of Origin: Fujian China
5 Insulation Class: Class B F
6 Frequency: 50Hz 60Hz
7 Output Power: 0.75HP
8 Phase: Single Phase
9 Pole: 2P, 4P, 6P
10 Wire: 100% copper
11 Protection Class: IP44/IP54
12 Cooling Method: IC411
13 Duty: S1 (continuous)
14 Certification: ISO, CE, CCC
15 Protect Feature: Totally Enclosed
16 AC Voltage: 110V 220V 230V 240V
17 Ambient temperature: -15°C≤0≤60°C
18 Altitude: Not exceed 1000m
19 Mounting Type: B3, B5, B35, B14,B34
20 Standard: Conform to IEC international standard
21 Installation: we will send detailed instructions together with the Motors
22 Packaging Details: Packed with export requirements, protect the motors and are convenient for transport.
23 Delivery Details: 25-30 Days





INSTALLATION SIZE AND OVERALL DIMENSION:



Frame No. Installation Size Installation Size For B14 Installation Size For B5 Overall Dimension
A B C D E F G H K M N P S T M N P S T AB AC AD HD L
71 112 90 45 14 30 5 11 71 7 85 70 105 M6 2.5 130 110 160 10 3.5 145 145 125 205 255

Figure MY712-2 Single Phase Capacitor Run Motor 0.75HP 230v 50Hz For Crushers 0

Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
