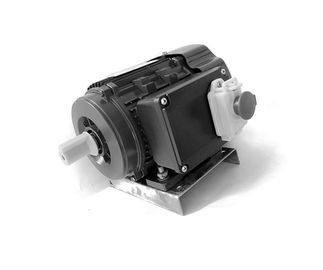

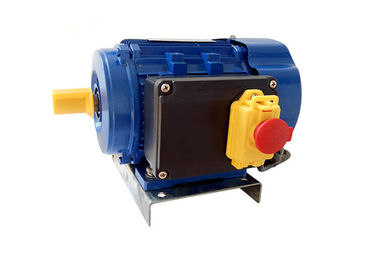

MY 1.5HP Asynchronous Single Phase Induction Motor With Protector For Bore Well Compressor

  • MY 1.5HP Asynchronous Single Phase Induction Motor With Protector For Bore Well Compressor
  • MY 1.5HP Asynchronous Single Phase Induction Motor With Protector For Bore Well Compressor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY802-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Bore Well Compressor Driving
Output 1.5HP / 0.75KW Pole 2
Voltage 240v Frequency 60Hz
Insulation Class B Rotation Direction Clockwise
Highlight

single phase electric motor

,

single phase asynchronous motor
Leave a Message
Product Description

MY 1.5HP Asynchronous Single Phase Induction Motor With Protector For Bore Well Compressor





DESCRIPTION:



We are engaged in providing superior quality of MY series one-phase induction motors manufactured using high-quality material. Our product is very durable and exceeds the expectations of our clients. In addition, it is reasonably priced in the market.



Single Phase Induction Motor TECHNICAL DATA:





Model Power   (V) (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MY802-2 1.5 1.1 220 50 7.16 0.97 75 2800 0.6 1.7



INSTALLATION SIZE AND OVERALL DIMENSION:



Frame No. Installation Size Installation Size For B14 Installation Size For B5 Overall Dimension
A B C D E F G H K M N P S T M N P S T AB AC AD HD L
80 125 100 50 19 40 6 15.5 80 10 100 80 120 M6 3 165 130 200 12 3.5 160 165 135 235

295





MY 1.5HP Asynchronous Single Phase Induction Motor With Protector For Bore Well Compressor 0



Single Phase Induction Motor APPLICATION:



1. Bore Well Compressor



2. Pumps



3. Fans



4. Conveyors



5. Material Handling



6. Machine Tool



CONTRAST ADVANTAGE:





1. Single Phase induction motor suitable for mounting in any position



2. With sealed bearings



3. Die-cast Aluminum or cast-iron frames and gasket conduit boxes



4. Low noise



OPERATING CONDITIONS:



1. Ambient temperature: -15℃≤θ≤60℃



2. Altitude: ≤1000m



3. Protection class: IP54



4. Insulation class: class F



5. Rated voltage: 220V, other voltage on request



6. Cooling type: IC 0141



7. Duty: Continuous(S1)



8. Rated frequency: 50HZ, other frequency on request





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
