Aluminum Housing Single Phase Induction Motor With NSK Bearing For Swimming Pump Driving

  • Aluminum Housing Single Phase Induction Motor With NSK Bearing For Swimming Pump Driving
  • Aluminum Housing Single Phase Induction Motor With NSK Bearing For Swimming Pump Driving
  • Aluminum Housing Single Phase Induction Motor With NSK Bearing For Swimming Pump Driving
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT802-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Swimming Pump Driving
Output 2HP Pole 2
Efficiency IE1,IE2 Duty Cycle S1
Insulation Class B/F/H
High Light

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

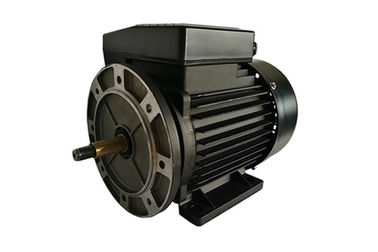

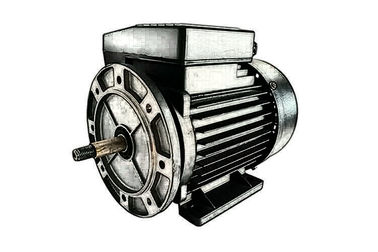

Aluminum Housing Single Phase Induction Motor With NSK Bearing For Swimming Pump Driving



DESCRIPTION:



A 2HP 2800RPM single-phase induction motor is suitable for all swimming pool pumps. The Pumps can also be used for Suction Sweeping. We choose the high-quality bearing NSK brand.



Single Phase Induction Motor TECHNICAL DATA:



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT802-2 2 1.5 220 50 9.44 0.95 76 2800 0.33 1.7






APPLICATIONS:



1. For best pool pump performance, position the above-ground pump below the pool water line and as close to the pool as possible.



2. Avoid installing above-ground pool pumps in damp, non-ventilated areas, as the motors require free circulation of air to help with cooling.



3. Shaft seals worn out from normal wear and tear can be easily replaced following the manufacturer's instructions.



4. Always store pool pumps and motors in a dry, well-ventilated room during the winter to protect from freezing.



CONTRAST ADVANTAGE:


1. Drain plug for easy maintenance.



2. Clear cover for viewing debris.



3. Oversize strainer basket has a larger leaf-holding capacity.



4. Corrosion-proof PermaGlassXL housing for all-weather performance and quiet operation.



5. High-performance impeller.



OPERATING LIMITS:



Ambient temperature:-15℃≦0≦40℃

Protection:IP44/IP54/IP55

Insulation Class: B/F/H

Rated voltage:380V or any voltage between 220-760V

Frequency:50HZ/60HZ

Duty: S1(continuous)

Above sea level: not exceed 1000m

Cooling method: ICO141

Connection:star-connection for up to 4HP,

delta-connection for 5HP and above.



MOTOR IN POOL PUMP PARTS:



Aluminum Housing Single Phase Induction Motor With NSK Bearing For Swimming Pump Driving 0

Single Phase Induction Motor GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
