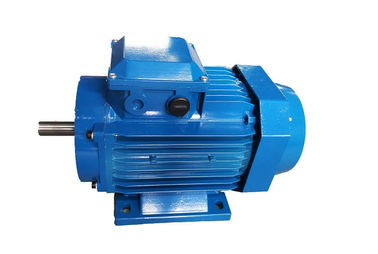

Y2 Square 3 Phase Induction Motor Alloy Aluminum Die Cast Housing New Design

  • Y2 Square 3 Phase Induction Motor Alloy Aluminum Die Cast Housing New Design
  • Y2 Square 3 Phase Induction Motor Alloy Aluminum Die Cast Housing New Design
  • Y2 Square 3 Phase Induction Motor Alloy Aluminum Die Cast Housing New Design
  • Y2 Square 3 Phase Induction Motor Alloy Aluminum Die Cast Housing New Design
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2-711-6
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden cases
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Aluminum Housing Motor Application Driving
Power 0.25HP / 0.18KW Pole 6
Phase 3 Phase Insulation Classtion Class B
Voltage 400v Type Asynchronous Motor
Product Name 3 Phase Induction Motor
High Light

three phase induction motor

,

squirrel cage electric motor
Leave a Message
Product Description

Y2 Square Alloy Aluminum Die-Cast Housing 3 Phase Induction Motor New Design



3 Phase Induction Motor  MAIN CHARACTERISTIC:



Y2 Square aluminum alloy casting 3 phase induction motor is a new product with the proprietary intellectual property right, developed through optimization of series Y2 aluminum casting motor enclosure. This product has been granted the utility model patent and the design patent. This product is provided with all features of the Y2 series casting product and owns original style and a more reasonable structure. At present, it has been applied in many types of high-grade mechanical equipment and is widely favored by users.



ADVANTAGE:



1. Outstanding performance

2. High efficiency

3. Energy-saving

4. High starting torque

5. Low noise

6. Little vibration

7. Reliable operation and easy maintenance







PERFORMANCE CHART:



Model Output HP KW Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor		 T start/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
Y2-631-2 0.25 0.18 0.53 2720 65.0 0.80 63.1 0.75 60.0 0.69 2.2 6.5 2.3
Y2-632-2 0.34 0.25 0.69 2720 68.0 0.81 65.1 0.76 62.0 0.70 2.2 7.0 2.3
Y2-711-2 0.5 0.37 0.99 2740 70.0 0.81 69.0 0.76 66.0 0.71 2.2 7.0 2.3
Y2-712-2 0.75 0.55 1.4 2740 73.0 0.82 71.2 0.70 70.0 0.72 2.2 7.0 2.3
Y2-801-2 1 0.75 1.83 2830 75.0 0.83 73.0 0.77 71.0 0.74 2.2 7.0 2.3
Y2-802-2 1.5 1.1 2.58 2830 77.0 0.84 75.1 0.78 73.0 0.73 2.2 7.0 2.3
Y2-90S-2 2 1.5 3.43 2840 79.0 0.84 77.0 0.78 74.9 0.76 2.0 7.0 2.3
Y2-90L-2 3 2.2 4.85 2840 81.0 0.85 80.0 0.79 79.9 0.76 2.0 7.0 2.3
Y2-100L-2 4 3 6.31 2870 83.0 0.87 82.0 0.80 81.1 0.77 2.0 7.0 2.3
Y2-112M-2 5.5 4 8.1 2890 85.0 0.88 83.9 0.83 82.0 0.80 2.0 7.0 2.2
Y2-132S1-2 7.5 5.5 11 2900 86.0 0.88 84.2 0.83 83.8 0.80 2.0 7.0 2.2
Y2-132S2-2 10 7.5 14.9 2900 87.0 0.88 85.8 0.84 84.9 0.78 2.0 7.0 2.2
Y2-132M1-2 15 11 21.3 2930 88.0 0.89 86.6 0.84 85.1 0.79 2.0 7.0 2.2
Y2-132M2-2 20 15 28.8 2930 89.0 0.89 87.9 0.84 86.4 0.80 2.0 7.0 2.2
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Y2-631-4 0.16 0.12 0.42 1310 57.0 0.72 56.1 0.69 51.9 0.55 2.1 5.2 2.2
Y2-632-4 0.25 0.18 0.62 1310 60.0 0.73 58.5 0.70 56.7 0.59 2.1 5.2 2.2
Y2-711-4 0.34 0.25 0.79 1330 65.0 0.74 62.4 0.73 59.3 0.59 2.1 5.2 2.2
Y2-712-4 0.5 0.37 1.12 1330 67.0 0.75 65.3 0.74 60.1 0.63 2.1 5.2 2.2
Y2-801-4 0.75 0.55 1.57 1390 71.0 0.75 69.2 0.74 68.6 0.64 2.4 5.2 2.3
Y2-802-4 1 0.75 2.03 1390 73.0 0.76 71.7 0.75 70.0 0.67 2.3 6.0 2.3
Y2-90S-4 1.5 1.1 2.89 1400 75.0 0.77 73.1 0.75 72.0 0.67 2.3 6.0 2.3
Y2-90L-4 2 1.5 3.7 1400 78.0 0.79 76.1 0.76 74.1 0.69 2.3 6.0 2.3
Y2-100L1-4 3 2.2 5.16 1430 80.0 0.81 78.0 0.79 75.5 0.69 2.3 7.0 2.3
Y2-100L2-4 4 3 6.78 1430 82.0 0.82 79.9 0.78 78.5 0.70 2.3 7.0 2.3
Y2-112M-4 5.5 4 8.8 1440 84.0 0.82 82.9 0.79 81.1 0.70 2.3 7.0 2.3
Y2-132S-4 7.5 5.5 11.7 1440 85.0 0.83 83.8 0.81 82.2 0.73 2.3 7.0 2.3
Y2-132M-4 10 7.5 15.6 1440 87.0 0.84 85.6 0.82 83.6 0.74 2.3 7.0 2.3
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
Y2-711-6 0.25 0.18 0.74 850 56.0 0.66 1.9 4.0 2.0
Y2-712-6 0.34 0.25 0.95 850 59.0 0.68 1.9 4.0 2.0
Y2-801-6 0.5 0.37 1.3 890 62.0 0.70 1.9 4.7 2.0
Y2-802-6 0.75 0.55 1.79 890 65.0 0.72 1.9 4.7 2.1
Y2-90S-6 1 0.75 2.29 910 69.0 0.72 2.0 5.5 2.1
Y2-90L-6 1.5 1.1 3.18 910 72.0 0.73 2.0 5.5 2.1
Y2-100L-6 2 1.5 3.94 940 76.0 0.75 2.0 5.5 2.1
Y2-112M-6 3 2.2 5.6 940 79.0 0.76 2.0 6.5 2.1
Y2-132S-6 4 3 7.4 960 81.0 0.76 2.1 6.5 2.1
Y2-132M1-6 5.5 4 9.8 960 82.0 0.76 2.1 6.5 2.1
Y2-132M2-6 7.5 5.5 12.9 960 84.0 0.77 2.1 6.5 2.1

Y2 Square 3 Phase Induction Motor Alloy Aluminum Die Cast Housing New Design 0



3 Phase Induction Motor GUARANTEE:



Y2 series 3 phase induction motor guarantee is one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
