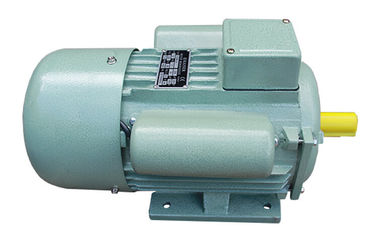

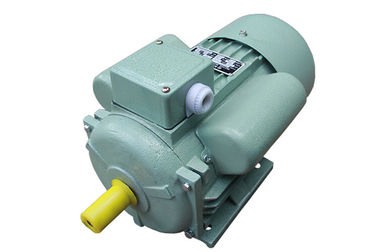

Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series

  • Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series
  • Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series
  • Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC132SB-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure IMB3/B5/B35/V1 HS Code 85014000 00
Output 5HP /3.7KW Pole 4
Protection Class IP44/54 Frequency 50Hz/60Hz
Insulation Class B/F/H Product Name Single Phase Induction Motor
Highlight

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series



Single Phase Induction Motor Description:



YC series is the classic motors for decades. It is widely used. The products are of good quality, and the price is perfect.

YC series single-phase asynchronous motor applied to general machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, water pump, machine, mixing machine, air compressor.


Technical Data:

Model Output HP KW Voltage Current Speed Eff Power Tstart/Tn Ist/In Tmax/Tn
(V) (A) (r/min) (%) Factor
YC132SB-4 5 3.7 220 26 1450 75 0.74 2.1 6.5 1.8


Features:



• Utilise IP55 enclosures, others request

• Class F insulation, Class H available on request

• 380/415 Volt 50/60Hz windings

• High-quality magnet wire

• Vacuum varnish impregnation for superior tropic proof insulation

• Industrial type service factors





Operating Limits:



Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Voltage: 380V or any voltage between 220-1140V

Rated Frequency: 50Hz/60Hz

Protection Class: IP44, IP54, IP55

Insulation Class: B/F

Cooling Method: IC0141

Working Duty: S1(Continuous)

Humidity: Lower than 90%

Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above





Performance Chart:



Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series 0

Capacitor Starting Electric AC Asynchronous Motor Single Phase 220v 50hz YC Series 1





Single Phase Induction Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ


1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
