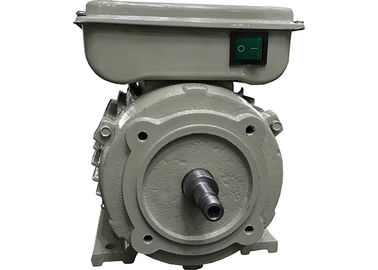

100% Copper Wire 0.75kw AC Asynchronous Motor Single Phase 220v 60Hz For Driving

large.img.alt
small.img.alt

Large Image :  100% Copper Wire 0.75kw AC Asynchronous Motor Single Phase 220v 60Hz For Driving

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC90S-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Efficiency: IE 1 Application: General Driving
Output: 1HP /0.75KW Pole: 4
Protection Class: IP54 Frequency: 60Hz
Insulation Class: F
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

100% Copper Wire 0.75kw AC Asynchronous Motor Single Phase 220v 60Hz For Driving



Description of product:



1,Frame Size: H80-132;
2,Power: 0.25-7.5Kw
3,Voltage:110-240V

4, Rated Frequency: 50 Hz / 60 Hz;

5, Poles: 2 / 4

6, Speed: 1450 -2980 r/min

7, Ambient Temperature: -15°C-40°C

8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;

9, Mounting: B3; B35; B34; B14; B5; V1;

10, Current: 1.5-30 A (AC);

11, Duty: continuous (S1);

12, Insulation Class: B / F;

13, Protection Class: IP44 / IP54;

14, Cooling Method: ICO 141 Standards;

15, Altitude: No more than 1,000 meters above sea level;

16, Packing: 1pc in a Strong carton several cartons on a Pallet or Plywood case.



DATA:



Model No.: YC90S-4
Phase: Single Phase
Type: Induction Motor
Output power: 0.75kw
Voltage: 220V
Frequency: 50 Hz
Protect feature: Totally enclosed fan-cooled
Protection class: IP44
Duty: Continuous (S1)
Insulation Class: F
Housing: Cast-Iron Housing
Certification: CE; ISO 9001



MOTOR ADVANTAGE:



1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output.
3. Nice painting after installing a motor
4. Reasonable price with high quality and kind service.
5. Used for machinery without special requirements.
6. Longer working life, easy construction, convenient installation, and repairmen



OPERATING LIMITS:



Ambient temperature:-15℃<0<40℃

Ambient temperature: not exceed 1000meters

Rated voltage:220V

Rated frequency:50Hz/60Hz

Duty/Rating:Continuous(running)

Insulation class: Class B/F

Protection class: IP44/54

Cooling method: ICO141



PERFORMANCE CHART:



Type

Out

put

Voltage
(V)
Current
(A)
Freq.
(Hz)
Power
factor
Eff(%) Speed

(r/min)
Tstart/Tn Ist/In Tmax/Tn
kW HP
YC90S-2 1.1 1.5 220 7.2 50 0.95 73.2 2880 2.8 6 1.8
YC90L-2 1.5 2 220 8.9 50 0.97 76 2900 2.8 7 1.8
YC100L-2 2.2 3 220 13.2 50 0.96 78.8 2900 3 6.5 1.8
YC90S-4 0.75 1 220 5 50 0.93 73.3 1450 2.8 6.5 1.8
YC90L-4 1.1 1.5 220 7.8 50 0.9 75 1450 2.5 6 1.8
YC100L-4 1.5 2 220 9.3 50 0.92 79.4 1450 2.8 7 1.8
YC112M-4 2.2 3 220 13.6 50 0.9 81.6 1450 2.3 6.5 1.8
YC132S1-4 3 4 220 18.2 50 0.9 83.2 1450 2.1 6.5 1.8
YC132S2-4 3.7 5 220 22 50 0.9 84.9 1450 2.1 6.5 1.8
YC132M1-4 5.5 7.5 220 32.5 50 0.9 85 1460 2 6.5 1.8
YC132M2-4 7.5 10 220 40 50 0.9 85.5 1460 2 6.5 1.8







100% Copper Wire 0.75kw AC Asynchronous Motor Single Phase 220v 60Hz For Driving 0







GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
