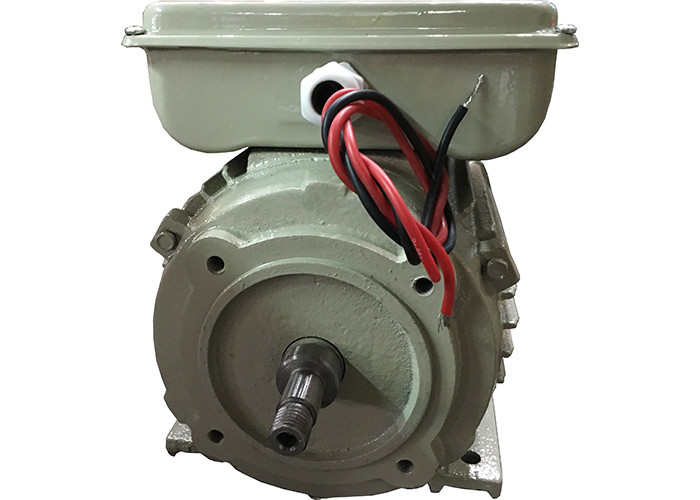

Single Phase Asynchronous Electric Motor With Cast Iron Housing Low Noise

large.img.alt
small.img.alt

Large Image :  Single Phase Asynchronous Electric Motor With Cast Iron Housing Low Noise

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC80B-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Asynchronous Motor Application: Driving
Output: 0.5HP /0.37KW Pole: 4
Protection Class: IP54 Frequency: 50Hz
Insulation Class: F
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

Single Phase Asynchronous Electric Motor With Cast Iron Housing Low Noise



APPLICATIONS:

YC series electric motor is used to drive small machines, especially for households and workshops that only need a single-phase power supply.



1. Low noise
2. lower temperature raising and starting current
3. higher starting torque
4. reliable operation
5. easy maintenance
6. pretty appearance


DATA:



Model No.: YC80B-4
Phase: Single Phase
Type: Induction Motor
Output power: 0.37kw/0.5HP
Voltage: 220V
Frequency: 50 Hz
Protect feature: Totally enclosed fan-cooled
Protection class: IP44
Duty: Continuous (S1)
Insulation Class: F
Housing: Cast-Iron Housing
Certification: CE; ISO 9001

MOTOR ADVANTAGE:

1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output.
3. Nice painting after installing THE motor
4. Reasonable price with high quality and kind service.
5. Used for machinery without special requirements.
6. Longer working life, easy construction, convenient installation, and repairmen


OPERATING LIMITS:



Frame Size:90S ~ 132S
Enclosure:IP44,IP54
InsulationClass :B , F
Voltage:220, 110 ~ 240V
Frequency:50Hz/60Hz
Working duty: S1
Speed:2 Pole, 4 Pole



Technical data at 50 Hz

Model Power Voltage
(V)
Current
(A)
Speed
(r.p.m)
Eff
(%)
Power
factor
Starting Torque
Rated torque
Starting Current
rated current
Max torque
Rated torque
KW HP
YC80A-2 0.37 1/2 220 3.7 2880 62 0.73 2.8 6.5 1.8
YC80B-2 0.55 3/4 220 5.3 2880 65 0.73 2.8 6.5 1.8
YC80C-2 0.75 1 220 6.7 2880 68 0.75 2.4 6.5 1.8
YC90S-2 1.1 1.5 220 7.2 2880 73.2 0.95 2.8 6 1.8
YC90L-2 1.5 2 220 8.9 2900 79.32 0.97 2.8 7 1.8
YC100L-2 2.2 3 220 13.2 2900 78.8 0.96 3 6.5 1.8
YC80A-4 0.25 1/3 220 3.4 1450 56 0.6 2.8 6 1.8
YC80B-4 0.37 1/2 220 4.5 1450 60 0.62 2.8 6 1.8
YC80C-4 0.55 3/4 220 6 1450 64 0.65 2.8 6 1.8
YC90S-4 0.75 1 220 5.5 1450 73.3 0.93 2.8 6.5 1.8
YC90L-4 1.1 1.5 220 7.8 1450 71 0.9 2.5 6 1.8
YC100L-4 1.5 2 220 9.3 1450 72 0.92 2.8 7 1.8
YC112M-4 2.2 3 220 13.5 1450 72 0.95 2.4 6.5 1.8
YC132SA-4 3 4 220 25.2 1450 74 0.73 2.4 6.5 1.8
YC132SB-4 4 5 220 30 1450 75 0.74 2.4 6.5 1.8




Single Phase Asynchronous Electric Motor With Cast Iron Housing Low Noise 0



GUARANTEE:




Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving a deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for a specific certificate for a different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
