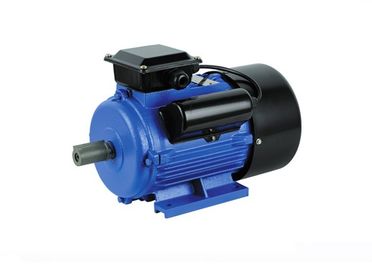

Heavy Duty Steady Running Single Phase Asynchronous Motor Induction Motor 4 Pole

large.img.alt
small.img.alt

Large Image :  Heavy Duty Steady Running Single Phase Asynchronous Motor Induction Motor 4 Pole

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC80A-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Induction Motor Application: General Driving
Output: 0.33HP /0.25KW Pole: 4
Protection Class: IP54 Frequency: 50Hz
Insulation Class: B
High Light:

single phase electric motor

,

single phase capacitor start motor

Heavy Duty Steady Running Single Phase Asynchronous Motor Induction Motor 4 Pole



APPLICATIONS:



YC Series Heavy-duty single-phase capacitor motors are suitable for small-size machine tools and water pumps, especially for family workshops where only a single-phase power supply is available. Motors of this series are integrated with up-to-date design, manufacture with the best quality materials, possess the features of pleasant-looking appearance, and meet the IEC standard.


YC series single-phase capacitors motors are of IP44 totally enclosed fan cooling type, rated outputs is 3HP or below, capacitor start, Within rated voltage and 50Hz, the starting torque is three times more than the rated torque and 60Hz is 2.75 times more. Motors for 4HP or over are of capacitor start and run type. It has concentrated the advantages of high starting torque, smooth running, low temperature rising, low noise, and greater overload performance. The designation number and nominative valves are all in conformity with IEC standards.



DATA:



Model No.: YC80A-4
Phase: Single Phase
Type: Induction Motor
Output power: 0.25kw
Voltage: 220V
Frequency: 50 Hz
Protect feature: Totally enclosed fan-cooled
Protection class: IP44
Duty: Continuous (S1)
Insulation Class: F
Housing: Cast-Iron Housing
Certification: CE; ISO 9001

MOTOR ADVANTAGE:

1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output.
3. Nice painting after installing the motor
4. Reasonable price with high quality and kind service.
5. Used for machinery without special requirements.
6. Longer working life, easy construction, convenient installation, and repairmen



OPERATING LIMITS:



Ambient temperature:-15℃<0<40℃

Ambient temperature: not exceed 1000meters

Rated voltage:220V

Rated frequency:50Hz/60Hz

Duty/Rating:Continuous(running)

Insulation class: Class B/F

Protection class: IP44/54

Cooling method: ICO141



PERFORMANCE CHART:



Type

Out

put

Voltage
(V)
Current
(A)
Freq.
(Hz)
Power
factor
Eff(%) Speed

(r/min)
Tstart/Tn Ist/In Tmax/Tn
kW HP
YC90S-2 1.1 1.5 220 7.2 50 0.95 73.2 2880 2.8 6 1.8
YC90L-2 1.5 2 220 8.9 50 0.97 76 2900 2.8 7 1.8
YC100L-2 2.2 3 220 13.2 50 0.96 78.8 2900 3 6.5 1.8
YC90S-4 0.75 1 220 5 50 0.93 73.3 1450 2.8 6.5 1.8
YC90L-4 1.1 1.5 220 7.8 50 0.9 75 1450 2.5 6 1.8
YC100L-4 1.5 2 220 9.3 50 0.92 79.4 1450 2.8 7 1.8
YC112M-4 2.2 3 220 13.6 50 0.9 81.6 1450 2.3 6.5 1.8
YC132S1-4 3 4 220 18.2 50 0.9 83.2 1450 2.1 6.5 1.8
YC132S2-4 3.7 5 220 22 50 0.9 84.9 1450 2.1 6.5 1.8
YC132M1-4 5.5 7.5 220 32.5 50 0.9 85 1460 2 6.5 1.8
YC132M2-4 7.5 10 220 40 50 0.9 85.5 1460 2 6.5 1.8







Heavy Duty Steady Running Single Phase Asynchronous Motor Induction Motor 4 Pole 0







GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
