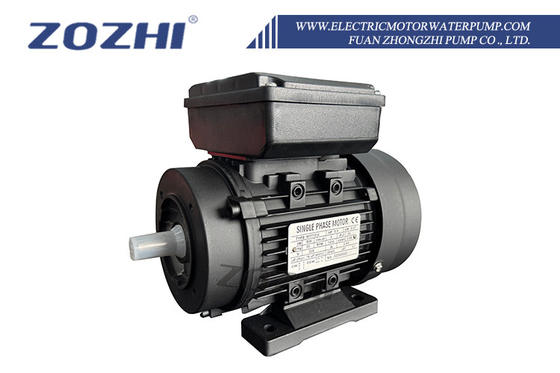

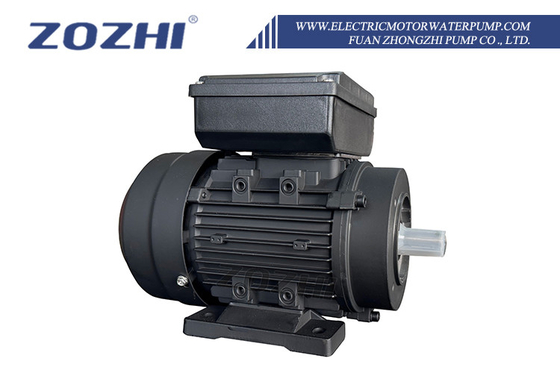

50Hz 0.37KW 0.5HP 1410rpm Single-Phase Capacitor-Start Run Asynchronous Electric Motor 220V AC Voltage 60Hz Frequency Rated Power

Place of Origin	CHINA
Brand Name	ZOZHI
Certification	CE,CCC,ISO9001
Model Number	MY802-4
Minimum Order Quantity	2pieces
Price	USD49-53piece
Packaging Details	CTNS/Veneer case
Delivery Time	14work days
Payment Terms	T/T, L/C
Supply Ability	10000pieces per30days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Frequency	50Hz/60Hz	Application	Bore Well Compressor Driving
Number Of Poles	4	Output	0.5HP /0.37KW
Speed	1440 RPM	Item Name	Single Phase Induction Motor
Structure	B3/B35/B5/B14/B34	Protection Class	IP55
Ambient Temperature	-15 ℃-40℃	Protect Feature	Totally Enclosed
Cooling Method	ICO9001

Leave a Message

Product Description

Product descriptions from the supplier

Model	MY712-4
Power	0.5HP/0.37KW
Frequency	50hz
Voltage	220V
Current	2.43A
RPM	1410
Mounting	B3/B14/B5/B34/B35
Phase	single phase
Protection class	IP55
Power Factor	0.98

Product Description

MY series asynchronous single phase electric motor

MY Series electric motor 0.5hp 0.37kw 220v, with latest design in entirety, are made of quality materials and meet the relative rules of IEC standard. MY motors have good performance, safe and reliable operation, nice appearance, and can be maintained very convenient, while with low noise, little vibration, light weight and simple construction. This series motors can be used on water pumps, household appliance, fan and recording meters, etc.

FRAME SIZE	MOUNTING DIMENSIONS(MM)			OVERALL DIMENSIONS(MM)
		IMB14	IMB5	OVERALL DIMENSIONS(MM)
	A B C D E F G H K	M N P R S T	M N P R S T	AB AC AD HD L
56	90 71 36 9 20 3 7.2 56 5.8	65 50 80 0 M5 2.5	100 80 120 0 7 3.0	110 108 100 156 198
63	100 80 40 11 23 4 8.5 63 7	75 60 90 0 M5 2.5	115 95 140 0 10 3.0	120 119 110 173 216
71	112 90 45 14 30 5 11 71 7	85 70 105 0 M6 2.5	165 130 200 0 12 3.5	132 137 117 188 250
80	125 100 50 19 40 6 15.5 80 10	100 80 120 0 M6 3.0	165 130 200 0 12 3.5	160 155 137 217 278
90S	140 100 56 24 50 8 20 90 10	115 95 140 0 M8 3.0	165 130 200 0 12 3.5	175 172 145 235 296
90L	140 125 56 24 50 8 20 90 10	115 95 140 0 M8 3.0	165 130 200 0 12 3.5	175 172 145 235 322
100L	160 140 63 28 60 8 24 100 12	130 110 160 0 M8 3.5	215 180 250 0 15 4.0	198 194 153 253 384

MODEL	Output	Voltange	Current	Full Speed	Eff@Load	Full-Load Power Factor	Ist/In	Break Down Torque	Approx. Weight
MODEL	(HP) (KW)	(V)	IN(A)	(RPM)	(%)		(A)	TST/TN TMAX/TN	KG
MY561-2	0.12 0.09	230	0.75	2800	56	0.92	3	0.5 1.7	2.5
MY562-2	0.16 0.12	230	0.94	2800	60	0.92	4	0.5 1.7	3
MY631-2	0.25 0.18	230	1.13	2800	65	0.92	5	0.4 1.7	4.2
MY632-2	0.34 0.25	230	1.79	2800	66	0.92	7	0.4 1.7	4.5
MY711-2	0.5 0.37	230	2.61	2800	67	0.92	10	0.35 1.7	5.7
MY712-2	0.75 0.55	230	3.71	2800	70	0.92	15	0.35 1.7	6.7
MY801-2	1 0.75	230	4.93	2800	72	0.92	20	0.33 1.7	9.3
MY802-2	1.5 1.1	230	6.71	2800	75	0.95	30	0.33 1.7	10.6
MY90S-2	2 1.5	230	9.03	2800	76	0.95	40	0.3 1.7	13
MY90L-2	3 2.2	230	13.08	2800	77	0.95	65	0.3 1.7	16
MY100L-2	4 3	230	17.8	2800	79	0.95	92	0.3 1.7	25
MY561-4	0.08 0.06	230	0.58	1400	50	0.9	2	0.45 1.7	2.8
MY562-4	0.12 0.09	230	0.83	1400	52	0.9	3	0.45 1.7	3.4
MY631-4	0.16 0.12	230	1.01	1400	57	0.9	3.5	0.4 1.7	4
MY632-4	0.25 0.18	230	1.33	1400	59	0.9	5	0.4 1.7	4.5
MY711-4	0.34 0.25	230	1.93	1400	61	0.92	7	0.35 1.7	5.5
MY712-4	0.5 0.37	230	2.82	1400	62	0.92	10	0.35 1.7	6..5
MY801-4	0.75 0.55	230	4.07	1400	64	0.92	15	0.35 1.7	9.1
MY802-4	1 0.75	230	5.21	1400	68	0.92	20	0.32 1.7	10.4
MY90S-4	1.5 1.1	230	7.13	1400	71	0.95	30	0.32 1.7	13
MY90L-4	2 1.5	230	9.4	1400	73	0.95	40	0.3 1.7	16
MY100L1-4	3 2.2	230	13.6	1400	76	0.95	65	0.3 1.7	22
MY100L2-4	4 3	230	18	1400	77	0.95	88	0.3 1.7	29
