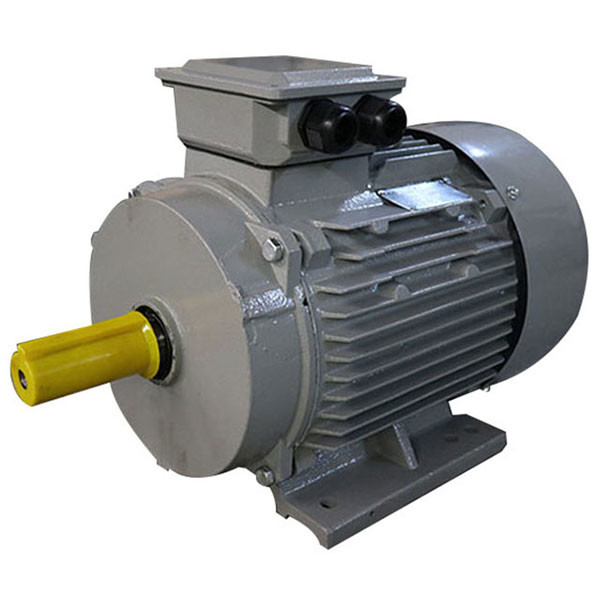

Cast Iron IP54 0.75kw 1Hp Squirrel Cage Electric Motor

Cast Iron IP54 0.75kw 1Hp Squirrel Cage Electric Motor
Cast Iron IP54 0.75kw 1Hp Squirrel Cage Electric Motor
video play

Large Image :  Cast Iron IP54 0.75kw 1Hp Squirrel Cage Electric Motor

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y2-802-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $32.2~$40.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 0.75kw/1Hp Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

1Hp Squirrel Cage Electric Motor

,

0.75kw Squirrel Cage Electric Motor

,

IP54 3 Phase Asynchronous Motor





Y2 series three-phase asynchronous motor is a kind of totally enclosed fan-cooled squirrel-cage induction motor, it was developed in 1990’ in China, the design of Y2 series electric motors absorbed the advanced technology of electric motors around the world. Y2 series electric motors have lots of features such as high efficiency and energy saving, large starting torque, excellent performance, low noise and vibration, compact structure, high reliability, easy operation, etc.





Y2 series is suitable for an industrial machine, like

1 water pump

2 big fan

3 food machines

4 gear motor

5 compressors



Operating Conditions



Ambient temperature: -15℃~40℃

Altitude: no higher than 1000 meters from sea level

Rated Voltage: ±5%

Frequency: 50HZ or 60HZ

Protection class: IP54 or IP55

Insulation class :F,B

Duty Type: S1.



Feature



1 TEFC cage

2 high efficiency

3100% copper wire &100% output.

4 low noise

5 easy maintenance






Cast Iron IP54 0.75kw 1Hp Squirrel Cage Electric Motor 0



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2
