4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard

4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard
4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard 4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard 4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard 4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard

Large Image :  4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MS100L2-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Induction Motor Application: General Driving
Output: 4HP / 3KW Pole: 4
Efficiency: IE1 Type: Asynchronous Motor
Insulation Class: F
High Light:

three phase induction motor

,

squirrel cage electric motor

4HP AC Motor 3 Phase Induction Motor Conform To The IEC Standard





Description:



The MS series aluminum housing three-phase asynchronous motors are the latest design and are made of selected quality materials and conform to the international IEC standard.MS motors have a very safe and reliable performance, are attractive in appearance, and can be easily maintained. They have low noise with little vibration but at the same time are lightweight and of simple construction. The MS series motors can be used for general electric motor applications.



Technical Data:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
HP KW
MS100L2-4 4 3 380 50 6.78 0.82 82 1410 2.3 2.4 5



Application:


MS series three-phase induction motors are newly designed based on series Y motor and general purpose low voltage three-phase induction motors of basic series. As compared with the series Y series, the MS series motors features are high efficiency.

MS series are general purpose motors suitable for common working environment and machinery without special requirements,

like air-compressor, pump, fan, medical apparatus and instruments, small machines, etc. MS motor can be equipped with PTC.



Advantage:



- Top-mounted terminal box
- Interchangeable foot mounting and flange mounting
- Motor frame Size form H56-H160



4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard 0

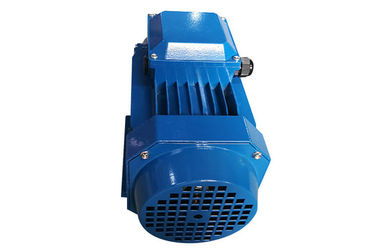

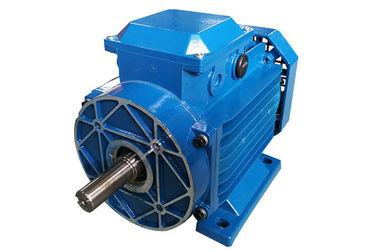

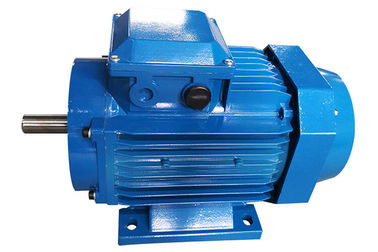

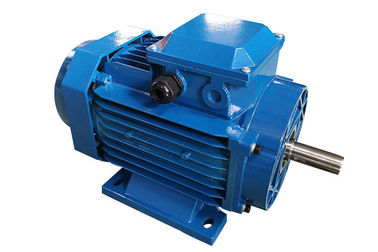

Pictures:





4HP AC 3 Phase 4 Pole Induction Motor Asynchronous Type Conform To IEC Standard 1



GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you A factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
