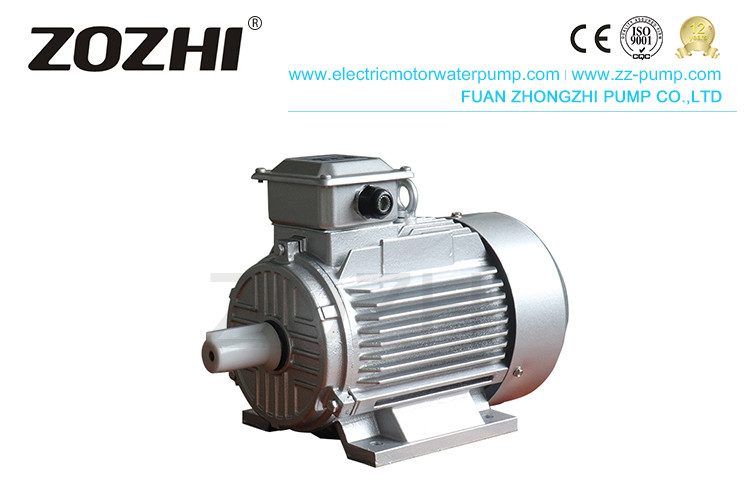

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor

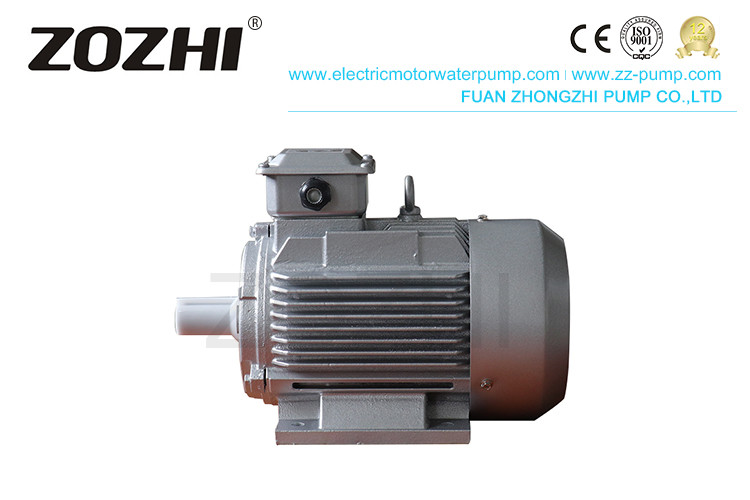

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor

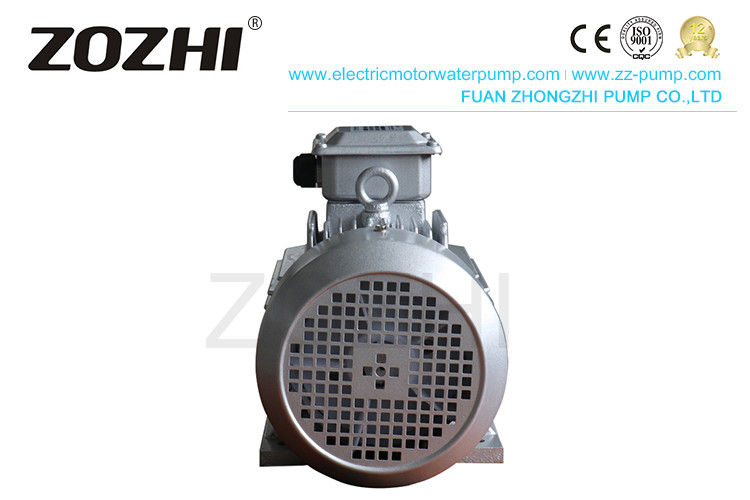

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor
video play

Large Image :  4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y2-802-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $32.2~$40.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 0.75kw/1Hp Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

1Hp 3 Phase Asynchronous Motor

,

0.75kw Asynchronous Induction Motor



Y2 Series Motors Totally Enclosed Fan Cooled(TEFC)

Ms series three-phase asynchronous electric motors are defined as totally enclosed, fan-cooled, squirrel cage type and noted for their novel design, beautiful modeling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy serving, etc.



Operating Conditions


Ambient temperature: -15≤θ≤40
Altitude: Altitude should be lower than 1000meters above sea level.
Rated voltage:380V Rated frequency:50Hz/60Hz
Connection:Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating:Conntinuous(S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling method: IC411.
If the motor of which the frequency, voltage, and connection are special, please stale when ordering.





Y2 Series Three Phase Induction Motor
Model Y2-802-4
Rated Power 0.75kw/1.0Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15 degree   ~40 degree
Weight 18kgs
Measure 35x29x21cm





4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor 0



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2



Reviews from the client:

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
