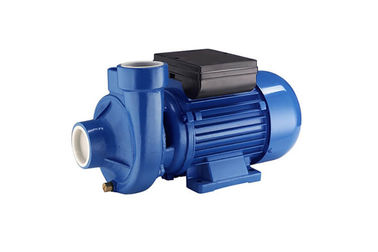

Dkm Series Centrifugal Electric Motor Water Pump 0.75hp 110v 60hz For Sewage Area
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xUsage | Waste Water | Output | 0.75HP / 0.55KW |
---|---|---|---|
Flow Max | 180 L/Min | Head Max | 16M |
Inlet/Outlet | 1.5"x1.5" | Feature | Big Flow |
Pressure | High Pressure | Product Name | Electric Motor Water Pump |
Highlight | electronic water pump,commercial electric water pump |
Dkm Series Centrifugal Electric Motor Water Pump 0.75hp 110v 60hz For Sewage Area
Electric Motor Water Pump Description
DKm pumps are recommended for pumping water and chemically non-aggressive liquid. With an open impeller, DK pumps are designed to pump fairly large amounts of impurities without fault cogging. Suitable for irrigation, industrial applications, etc. As with impeller cantilevered directly on the motor shaft, the DK pumps are compact, reliable, simple to use, and almost maintenance-free. You can install it horizontally or vertically.
Electric Motor Water Pump technical data:
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
1.5DKM-16 | 0.75 / 0.55 | 4 | 2850 | 180 | 16 | 9 | 1.5"x1.5" | 320x180x210 | 9.9 |
Other voltages and frequencies available on request
Electric Motor Water Pump Application:
1. You can use the water pump to transfer clean water or other liquids similar to water in physical and chemical properties.
2. suitable for industrial use and urban water supply, pressure boosting for high buildings
and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, supporting equipment, etc.
Electric Motor Water Pump Advantages:
- The best balance between non-clogging and high efficiency
- suitable for larger volumes
- reliable principle
- low impeller wear due to the closed design
- reduced energy consumption
- ideal for stormwater, irrigation, drainage, and dewatering
Operating limitations:
Max ambient temperature up to 40ºC
Max fluid temperature up to 80ºC
Max pressure up to 10 bar
Electric Motor Water Pump
Structural characteristics:
Main Specification | Standard | Optional |
Transmission medium | Clean Water, sewage water, and fluids | |
Pump body | Cast Iron | |
Impeller | Brass with a centrifugal radial flow | |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
Our service:
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
