10HP AC 3 Phase Induction Motor Electric Motor With Aluminium Housing IEC Standard

  • 10HP AC 3 Phase Induction Motor Electric Motor With Aluminium Housing IEC Standard
  • 10HP AC 3 Phase Induction Motor Electric Motor With Aluminium Housing IEC Standard
  • 10HP AC 3 Phase Induction Motor Electric Motor With Aluminium Housing IEC Standard
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS132M-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Asynchronous Motor Application General Driving
Output 10HP / 7.5KW Pole 4
Efficiency IE1,IE2 Type 3 Phase Induction Motor
Insulation Class B/F/H
High Light

three phase induction motor

,

squirrel cage electric motor
Leave a Message
Product Description

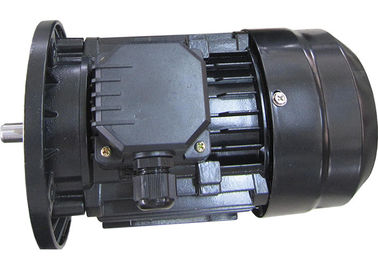

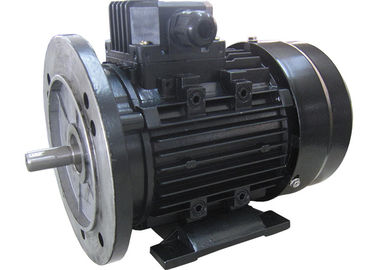

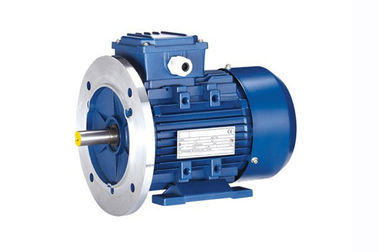

10HP AC 3 Phase Induction Motor Electric Motor With Aluminium Housing IEC Standard



3 Phase Induction Motor Description:



MS132M-4 3 phase induction motor is 4 pole 2800rpm Asynchronous Motor with Aluminum housing, meet to IEC standard.



MS132M-4  Aluminium shell series motor meets the relative rules of IEC standard, has good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, has low noise, slight vibration, lightweight and simple construction.





3 Phase Induction Motor Technical data:



Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS132M-4 10 7.5 380 50 15.6 0.84 87 1445 2.3 2.4 7






3 Phase Induction Motor Applications:



MS132M-4  is widely used in everyday and precision machinery without special requirements, such as machine tools, pumps, blowers, etc. It is universally applied in reducers, blowers, water pumps, compressors, pipelines, packing industry, food processing machinery, and woodworking process.





Advantages:



1. Aluminum frame, end shields, and base


2. High strength cable gland


3. Shaft key and protector supplied


4. Superior paint finish





Working conditions:



1. Ambient temperature:-15℃≦0≦40℃



2. Protection:IP44/IP54/IP55



3. Insulation Class: B/F/H



4. Rated voltage: Three Phase 380V or any voltage between 220-760V



5. Frequency:50HZ/60HZ



6. Duty: S1(continuous)



7. Above sea level: not exceed 1000m



8. Cooling method: ICO141



9. Connection:star-connection for up to 4HP



10. Delta-connection for 5HP and above





Structural characteristics:



10HP AC 3 Phase Induction Motor Electric Motor With Aluminium Housing IEC Standard 0



3 Phase Induction Motor Guarantee:



3 phase induction motor MS series Guarantee is one year from the shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:



1. Directly factory sale


2. Quick response to 2-8hours, response rates over 92%


3. 24 hours phone call is available. Feel free to contact us


4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.





FAQ:


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
