Energy Saving Electric Motor Water Pump 1.5HP / 1.1KW With 9M Max Suction , Stainless Steel

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number QB-90
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 1.5HP / 1.1KW Flow Max 90 L/Min
Head Max 60M Suction Max 9M
Inlet/Outlet 1"x1" Speed 3450RPM 60HZ
Product Name Electric Motor Water Pump Application Water Booster
High Light

electronic water pump

,

commercial electric water pump

Leave a Message
Product Description





Energy Saving Electric Motor Water Pump 1.5HP / 1.1KW With 9M Max Suction, Stainless Steel



Application



QB series pump is suitable for pumping clean water and fluids which are not chemically aggressive to the pump components. They are extremely reliable, economical, and simple to use. They are particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks, watering gardens, etc. These pumps should be installed in a covered area, protected against the weather.





Electric Motor Water Pump Technical Data



MODEL POWER MAX.FLOW
l/min
MAX.HEAD
m
SUCT
m
INLET/
OUTLET
G.W
kg
PACKING DIMENSION
cm
KW HP
QB-90 1.1 1.5 90 60 9 1½ "x1½" 22



425x200x220

Other voltages and frequencies available on request





Structural Characteristics



Pump body: Cast Iron/Brass
Coil Wire: Copper
Impeller: Brass
Bearing: C&U/NSK/SKF
Insulation class: B and F
Protection class: IP44 or IP54
Mechanical seal: Carbon-ceramic/Stainless steel
Shaft: 45# Steel / Stainless steel 420
Single-phase motor with Thermal protector

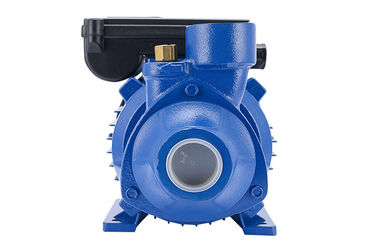

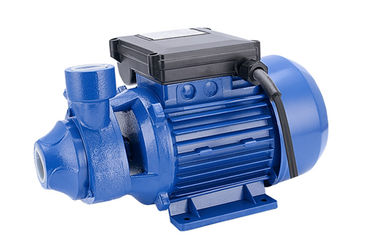

 Energy Saving Electric Motor Water Pump 1.5HP / 1.1KW With 9M Max Suction , Stainless Steel 0




 Structural Characteristic:


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC




Shipping & Payment


1.FedEx/DHL/UPS/TNT for samples
2.Batch goods delivered by sea
3.Customers specifying freight forwarders or negotiable shipping methods
4.Delivery Time:7-15 days for samples; 25-30 days for batch goods
5.30%T/T or 100%LC, balance against the copy of B/L



Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
