0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function

China 0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function supplier
0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function supplier 0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function supplier

Large Image :  0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: PM-45

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:260x150x185mm/pc, N.W.:5.8kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Motor Water Pump Application: Pumping
Power: 0.5HP / 0.37KW Flow Max: 36 L/Min
Head Max: 36M Suction Max: 9M
Inlet/Outlet: 1"x1" Speed: 2850RPM



0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function


Description:

PM-45 single phase electric motor water pump is close-coupled self-priming shallow well pumps with built-in ejector, Brass plate embedded in water pump body to avoid impeller jam in order to improve water pump life.

Technical data:


ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
PM-450.5 / 0.371.62850363691"x1"260x150x1855.8


Other voltages and frequencies available on request


Applications and Advantages:


1) They are extremely reliable, light, economical and simple to use
2) Finding many uses in domestic applications
3) In particular the automatic distribution of water from surge tanks
4) Watering gardens and for boosting insufficient mains water pressure

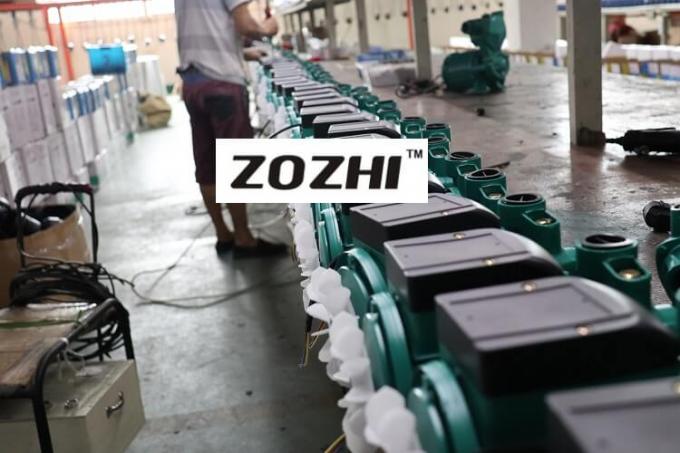

Produce line picture:

0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function

Structural characteristics:


Main Specification

StandardOptional
Transmission mediumClean Water
Pump bodyCast Iron
ImpellerBrass
Motor housingAluminum
Stator&Rotor1. Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast Iron A Brass plate embedded to avoid impeller jam
BearingChinese Best Quality BearingNSK, SKF or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
Thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction Lift 9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC

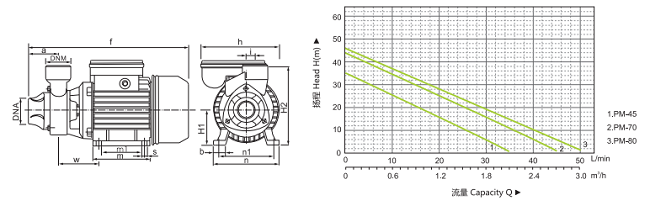

Drawing

0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function0.5hp 220v 50hz Single Phase Electric Motor Water Pump With Avoid Impeller Jam Function


Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

Our service:
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
