24mm Shaft Asynchronous Induction Motor AR Interpump For Pressure Washers

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS112L-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 20 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220-380V Rotation Direction Clockwise
Efficiency IE2 Hollow Shaft 24mm
Protection Class IP55 Insulation Class F Class
Bearing Brand C&U OR NSK Winding 100% Copper Wire
Product Name Hollow Shaft Motor
High Light

24mm Shaft Asynchronous Induction Motor

,

AR Interpump Asynchronous Induction Motor

,

Pressure Washers Hollow Shaft Electric Motor

Leave a Message
Product Description

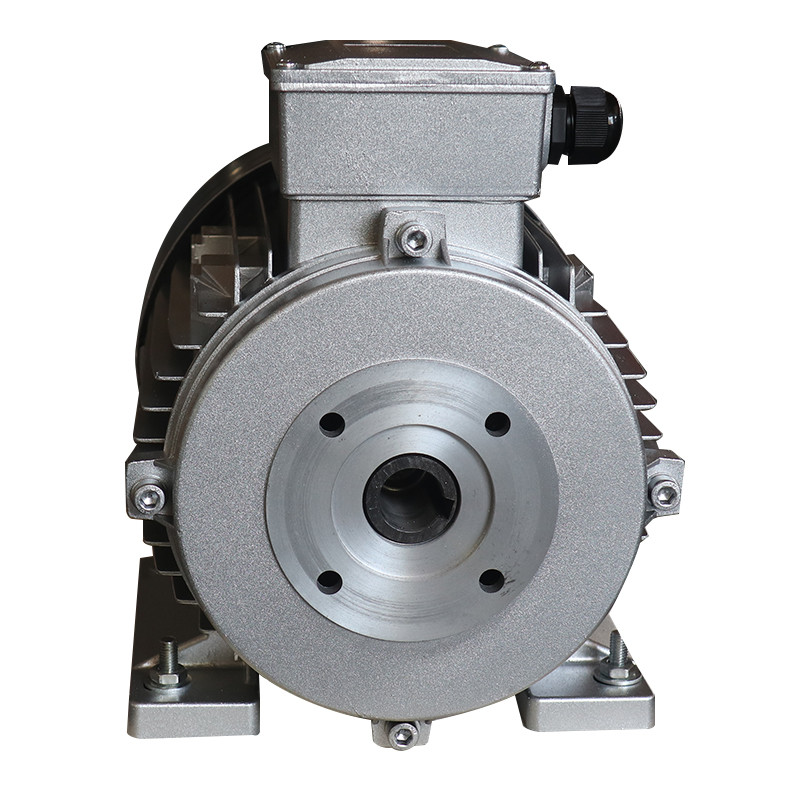

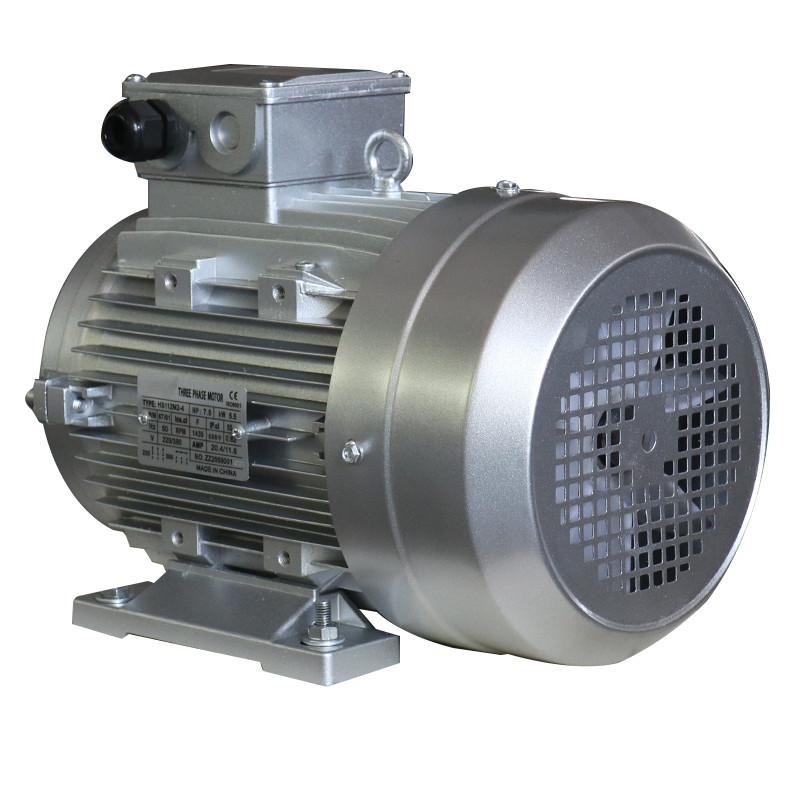

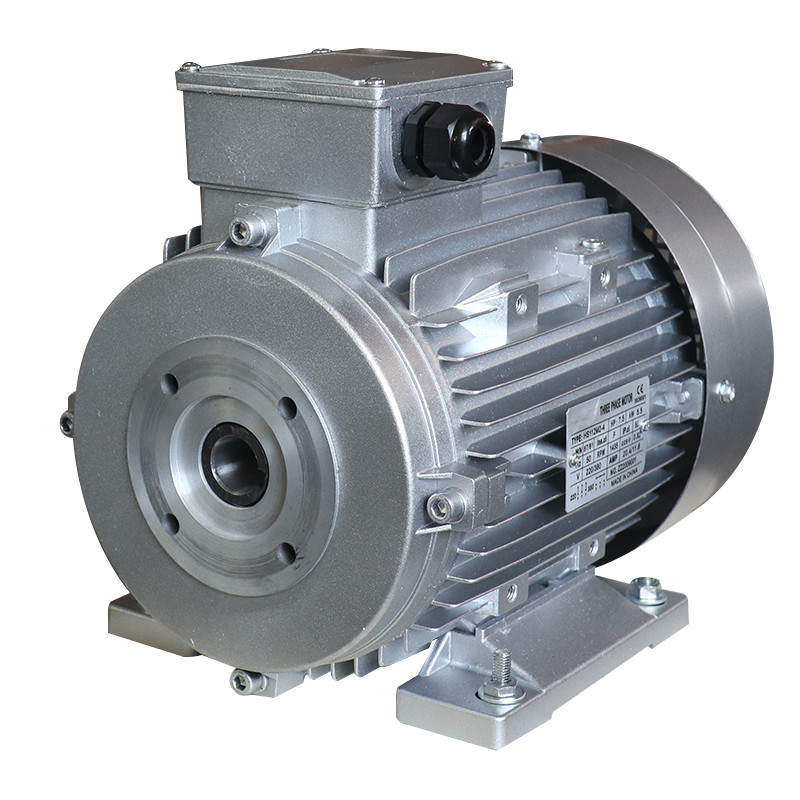

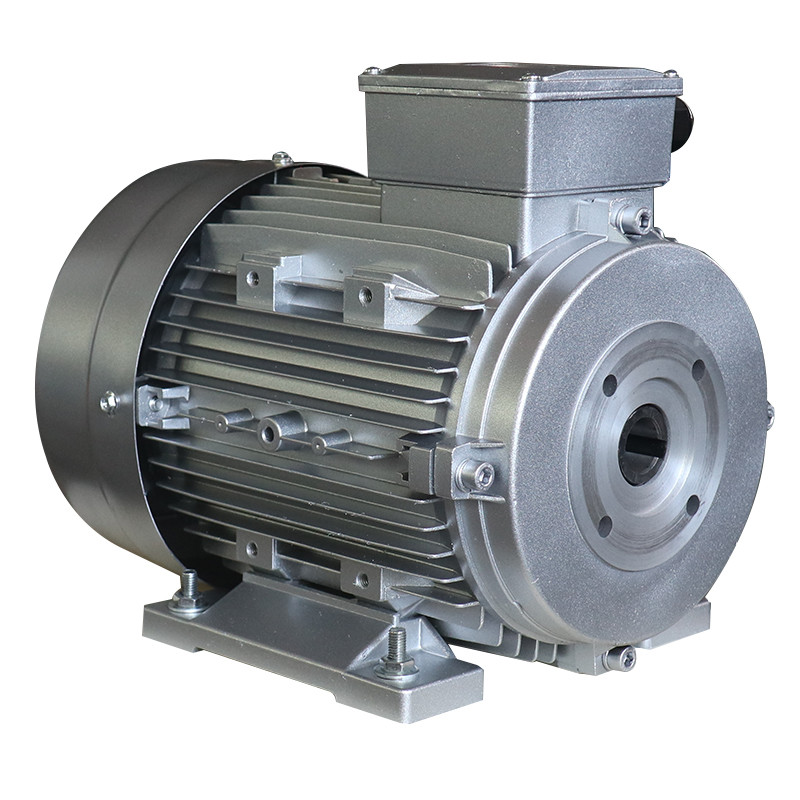

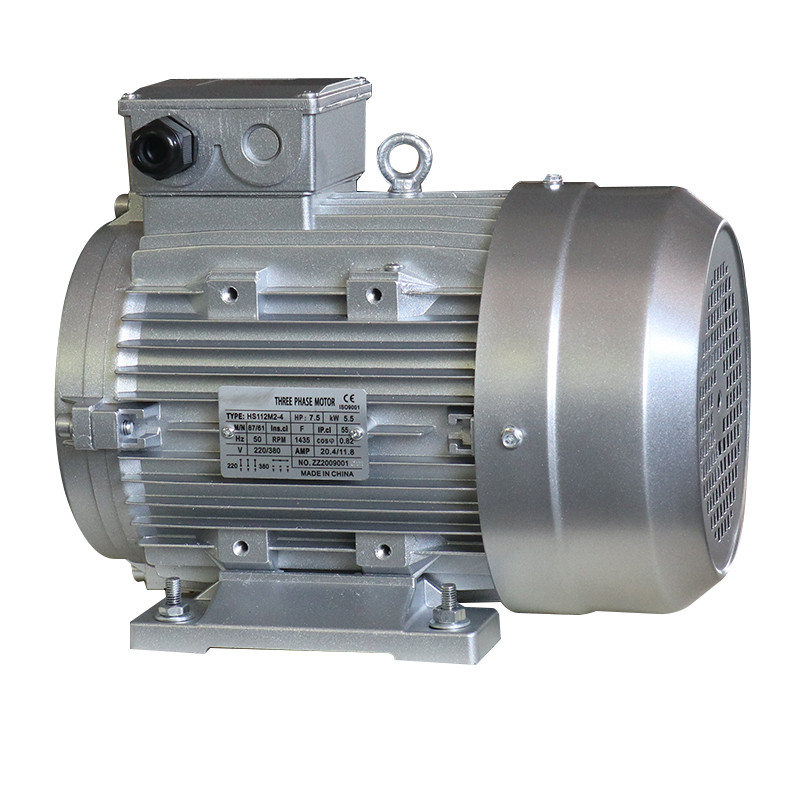

24mm Shaft Asynchronous Induction Motor AR Interpump For Pressure Washers

Hollow Shaft Motor



Three-phase aluminum housing hollow shaft motor is for pressure washers, entire copper coil, fully enclosed design, air-cooled, concave metal tube design, squirrel cage A.C. asynchronous motor. The engine has good thermal conductivity, low current, low-temperature rise, good heat dissipation, low noise, ample starting torque, compact structure, and simple operation.



It is a 100% copper coil, high-quality bearing, high and light rotor, and rigid assembly. The shaft lift is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength, maintains all the technical and maintenance advantages of the standard motor, and conforms to the IEC standard. Therefore, it is an ideal choice for cleaning equipment.





Model: HS112L-4                             Horsepower: 7KW

RPM:1400                                        Shaft Size:24mm Hollow

Voltage: 220-380V                            Frequency: 50HZ

Motor housing: Aluminum                 Bearing Brand: C&U

Shaft: C#45                                      Insulation: Class F

Protection: IP55                               Installation: B3 Hollow shaft 24mm



Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine.

                       2.100% high-quality copper wire







Advantage:



High-quality material, good heat dissipation



high efficiency, low temperature, low noise



Seamlessly connect with equipment for worry-free operation.





Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor

1. Cold-rolled silicon steel sheet by high-speed punching machine.

2. 100% high-quality copper wire

bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency5 50HZ
thermal protection Yes
Installation Hollow shaft 24mm



Industry Information



Induction motor


The asynchronous motor has the advantages of simple structure, convenient manufacture, use and maintenance, reliable operation, small quality, and low cost. Asynchronous motors are mainly used to drive machine tools, water pumps, blowers, compressors, and most industrial and agricultural production types of machinery, such as hoisting equipment, mining machinery, light industrial machinery, agricultural and sideline products processing machinery, household appliances, and medical equipment. In addition, there are many applications in household appliances, such as electric fans, refrigerators, air conditioners, vacuum cleaners, etc.







HOLLOW SHAFT ELECTRIC MOTOR





Hollow Shaft Electric Motor Application



Hollow shaft motor connection high-pressure pump used for self-service car washes and professional high-pressure washers that require a longer service life.



hollow shaft electric motor







Production line

24mm Shaft Asynchronous Induction Motor AR Interpump For Pressure Washers 2

hollow shaft motor



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



24mm Shaft Asynchronous Induction Motor AR Interpump For Pressure Washers 4



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 24mm Shaft Asynchronous Induction Motor AR Interpump For Pressure Washers 10
water pump water pump mechnical seal

24mm Shaft Asynchronous Induction Motor AR Interpump For Pressure Washers 14



Hollow Shaft Motor  Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:



1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods are produced by ourselves. We provide one-stop services from designing and printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
