B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine

  • B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine
  • B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine
  • B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS562-4
Minimum Order Quantity 1pc
Price $25.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 0.09KW Pole 4
Phase Three Phase Housing Aluminum
Insulation Class F Protection IP55
Rated Voltage 380V Duty S1(continuous)
Flange Size B14
High Light

B14 Flange AC Induction Motor

,

S1 Duty AC Induction Motor

,

Coffee Roasting Machine Electrical Induction Motor
Leave a Message
Product Description

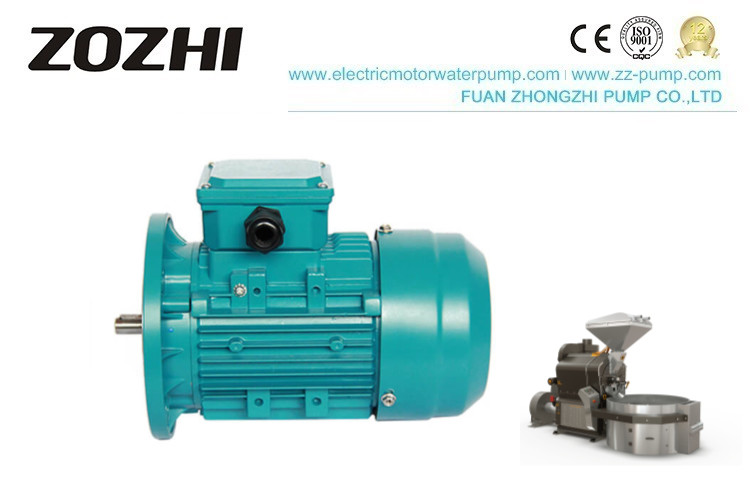

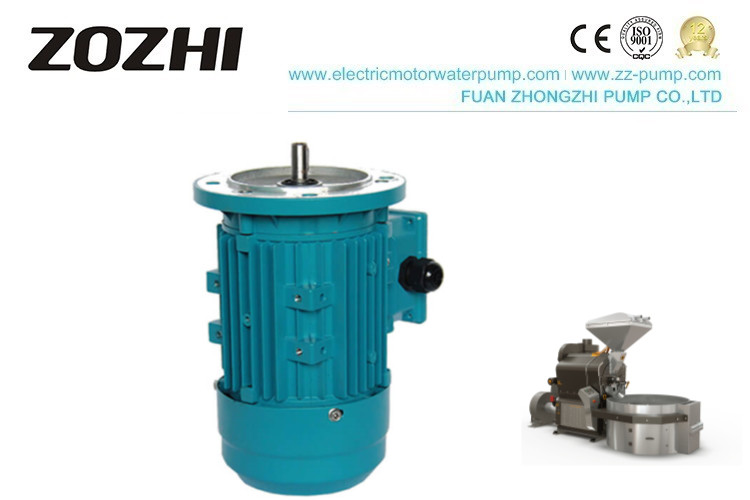

ZOZHI 3 Phase Induction Motor For Small Counter Top Coffee Roasting Machines

3 Phase Induction Motor



Model: MS562-4

Power: 0.09KW/0.12HP

Flange size: B14



1) MS series motors are enclosed fan cooling three-phase squirrel cage induction motors. It adopts the latest design and high-quality material and conforms to the IEC standard.



2) MS series motor has many advantages, including high efficiency, energy saving, high starting torque, low noise, little vibration, lightweight, reliable and convenient operation, easy maintenance, etc.



3) The motor has removable feet made of aluminum alloy die casting. Users could be mounting variously according to their needs.



4) These series motors fit common sites and concise machines with no special requirements, including an air compressor, pump, fan, medical apparatus and instruments, small machines, etc.



Application:

electric motor

B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine 1

B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine 2

B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine 3

 Its user-friendly design, ease of use, and practicality attract great interest from newly-opened third-wave coffee houses.

This machine is made of heat-resistant and high-quality raw materials that are readily available worldwide.



Reviews from the client:

B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine 4



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A









​



B14 Flange S1 Duty AC Induction Motor For Coffee Roasting Machine 6

centrifugal water pump vortex water pump

three phase electric motor

centrifugal electric water pump

3 Phase Induction Motor



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5
