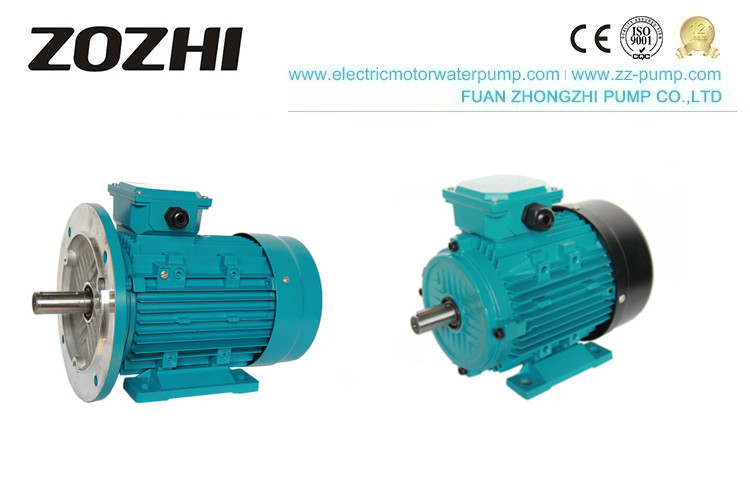

1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty

  • 1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty
  • 1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS90L-4
Minimum Order Quantity 1pc
Price $80.00-$90.00
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.5kw/2Hp Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

1450RPM 3 Phase Ac Motor

,

1.5KW 3 Phase Ac Motor

,

S1 Duty Aluminum Ac Motor
Leave a Message
Product Description

3 Phase Ac Electric Motors 380V MS90L-4 1.5KW 1450RPM Aluminum Body Copper Wire

3 Phase Induction Motor



MS series motors are enclosed, fan-cooled (TEFC), three-phase squirrel cage induction motors. They are newly designed in conformity with the relevant requirements of IEC standards.



Ms series motors have outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation, easy maintenance, etc.



Ms series motors are widely used in many places where do not exist combustible, explosive, or corrosive gas, and without any special pumps, fans, mixers, transport machines, machines, equipment, etc.







*IEC standard
*Superior finish
*Externally ventilated
*Lightweight construction
*IP55 protection
*Choice of foot or flange mounting
*Class F insulation
*CE approval
Operating conditions
Ambient temperature: -15≤θ≤40
Above sea level: not exceed 1000m
Rated voltage: ±5%





Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5




ms three phase electric motor



three phase electric motor



1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty 2

1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty 3



Reviews from the client:

1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty 4



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A









​



1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty 6

centrifugal water pump vortex water pump

three phase electric motor

centrifugal electric water pump



1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty 10

1.5KW 1450RPM 3 Phase Ac Motor 380V MS90L-4 S1 Duty 11



INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
