ISO Engine Vibration Damper Anti Vibration Mount For Diesel Generator

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number 100KGS-2000kgs
Minimum Order Quantity 10pcs
Price $2.0-$28
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time it is 2-5 days if in stock,7-15 days if not stock
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Rubber And Stainless Stell Shape Bell
Hole Size M12 M14 M16 Color Silver And Black
Application Generator Rubber Mounts
High Light

Diesel Generator Engine Vibration Damper

,

ISO Engine Vibration Damper

,

Diesel Generator Anti Vibration Mount

Leave a Message
Product Description

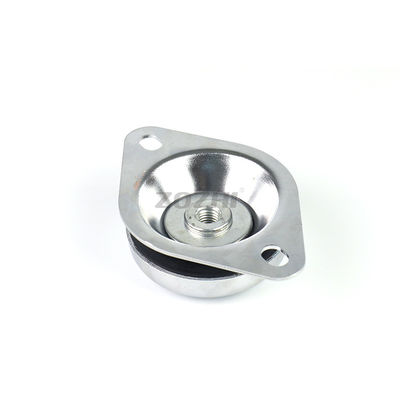

Engine Vibration Damper Rubber Mount Anti-vibration Mounting For Diesel Generator Sets



Description:



ANTI-vibration mounting in the axial stress and lateral pressure can achieve a high degree of damping effect especially use in generators, engines and systems, the damping effect is very good, the scope of application about 25Hz (1.500rpm), internal rubber and iron completely glued, can provide the best damping effect in addition with safety lock parts, lock products to ensure the safety of section cushioning rubber Plastic compression is small, the load is large, the the1500-3500rpm frequency for the motor.





Anti Vibration Mount
Elastic elements
Rubber
Metal Parts
White Zinc-plated steel
Environment
-40-120°C
Usage
Diesel and gasoline engine, diesel and gasoline generator, motors, pumps, etc

Application:

Diesel and gasoline engine, diesel and gasoline generator, motor, pumps, etc



Characteristics:

Low dynamic coefficient, good anti-vibration effect, small size, low height, stable performance, easy and convenient installation, can be directly placed between the isolated unit and the ground, generally without anchor bolts, no concrete foundation, short construction period, Low investment is the ideal product for domestic power machinery to implement no basic anti-vibration



anti-vibration mount




ANTI-VIBRATION MOUT

KG A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
100KGS 70 34 M12 75 100 130
200KGS 95 43 M12,M14,M16 100 120 153
300KGS 100 43 M12,M14,M16 100 120 153
400KGS 100 44 M12,M14,M16 108 143 178
500KGS 100 44 M12,M14,M16 108 143 178
600KGS 122 52 M14, M16 125 158 190
800KGS 150 56 M18, M20 151 182 216
1000KGS 150 56 M18, M20 151 182 216
2000KGS 151 58 M20 143 130 167



Thick and smooth steel

Adopting the stainless steel in high hardness to ensure the strong enough for the machinery.

The rubber inside is oil-prevent and anti-shock.

Can apply for the outside using and anti-rusty

anti-vibration mont
anti-vibration mount

A perfect match between metal and rubber

The smooth surface treatment and the high accuracy screw and the perfect match between metal & rubber can prevent vibration, shock,and noise of the machine and equipment to the biggest degree

Complete product model Metal

rubber shock absorbers are available in a full range of models

anti-vibration mount
anti-vibration mount

Multiple installation methods

Metal rubber dampers are available in a variety of mounting styles, including flat, side, and side mounts. The transverse stiffness is higher than the longitudinal stiffness, and the lateral stability is good when placed flat.



Production line:

anti-vibration mount

ISO Engine Vibration Damper Anti Vibration Mount For Diesel Generator 7



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH ISO Engine Vibration Damper Anti Vibration Mount For Diesel Generator 13
water pump water pump mechnical seal



Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
