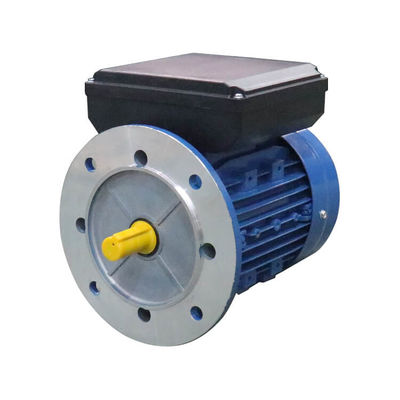

ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor

  • ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor
  • ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor
  • ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor
  • ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ML90S-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML90S-4 Power 1.1KW
Voltage 220V Pole 2pole
Protection Class IP55 Insulation Class F
Product Name Single Phase Induction Motor
Highlight

1.1KW Single Phase Aluminum Motor

,

7.02A Single Phase Aluminum Motor

,

IP55 Single Phase Synchronous Motor
Leave a Message
Product Description

High-Quality ML90S-4 1.1KW Single-Phase Aluminum housing Motor

 Single Phase Induction Motor


Description

Single-phase, ML series Aluminium housing motors are acknowledged that having good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.


- Superior finish

- Externally Ventilated
- Lightweight construction
- Top-mounted terminal box
- IP55 Protection
- Interchangeable foot mounting and flange mounting
- Motor frame Size form 71-100
- 2,4 pole
Operating CondiTions:
Ambient temperature: -15oC≤θ≤40oC
Above sea level: not exceed 1000m
Rated voltage: ±5%




Data


Model Power
(KW)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 0

ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 1



Reviews from the client:

ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 2

Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 3





​



ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 4
ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 5
ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 6


ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 7
ML90S-4 IP55 7.02A 1.1KW Single Phase Aluminum Motor 8
